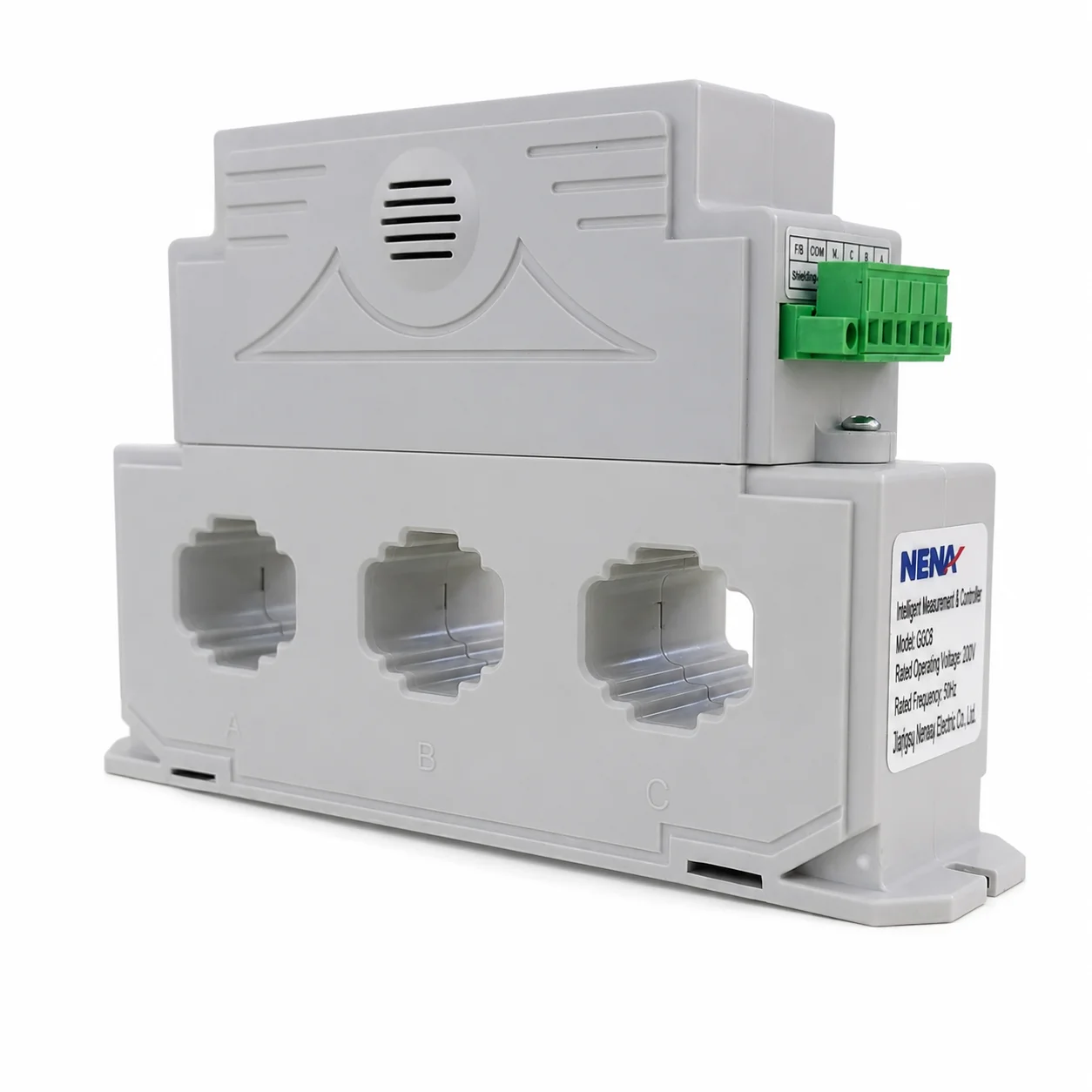

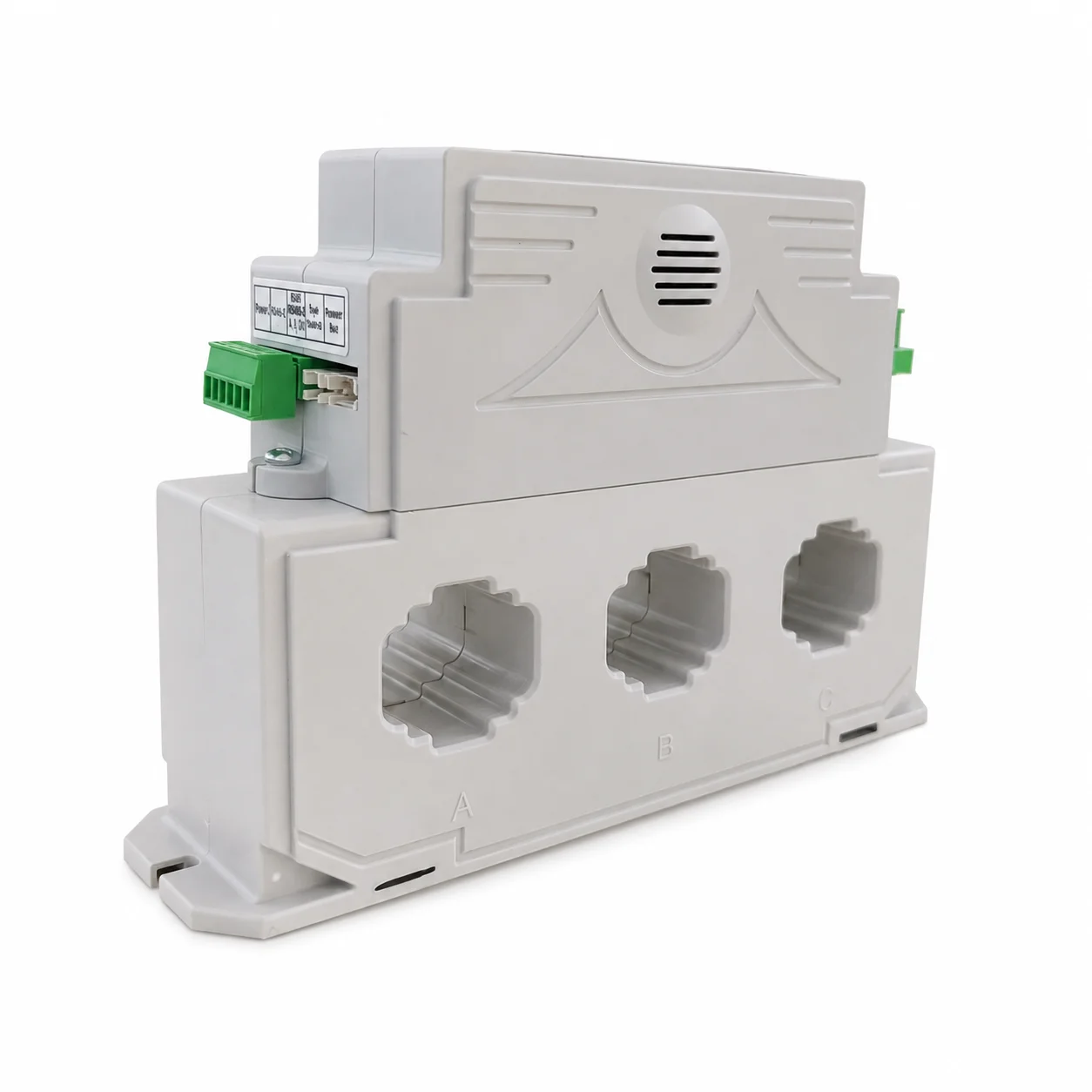

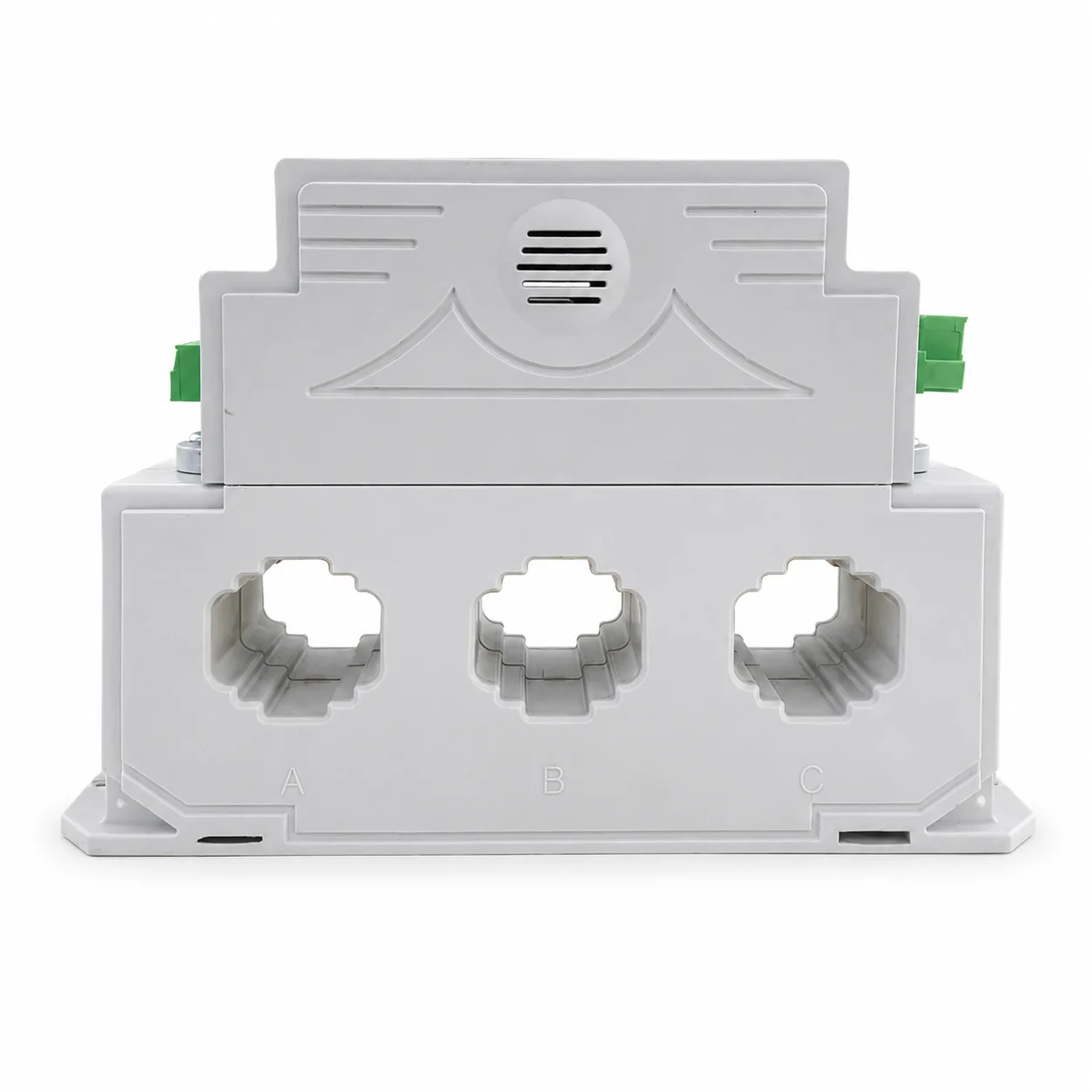

Integrated Power Mete

Function Introduction

• Overvoltage protection: When the voltage of any phase reaches the set overvoltage threshold, the corresponding action is executed.
• Undervoltage protection: When the voltage of any phase reaches the undervoltage set threshold, the corresponding action is executed.
• Phase loss protection: When the voltage of any phase reaches the set phase loss threshold, the corresponding action is executed.
• Overcurrent protection: When the current in any phase reaches the set overcurrent threshold, the corresponding action is executed.
• ØShort-circuit short-delay protection: When the current in any phase reaches the short-circuit short-delay set threshold, the corresponding action is executed.
• Phase loss protection: The corresponding action is executed when only one phase current is zero in the three phases.
• Ø Current imbalance protection: When the current in any phase reaches a set threshold, the corresponding action is executed.
• ØLeakage current protection: Performs corresponding actions when the residual current reaches a set threshold.
• Over-temperature protection: When any channel temperature reaches the set threshold, corresponding actions will be executed.
• Communication fault protection: A fault is reported when communication between the panel and the controller, or between the controller and the gateway, is lost.

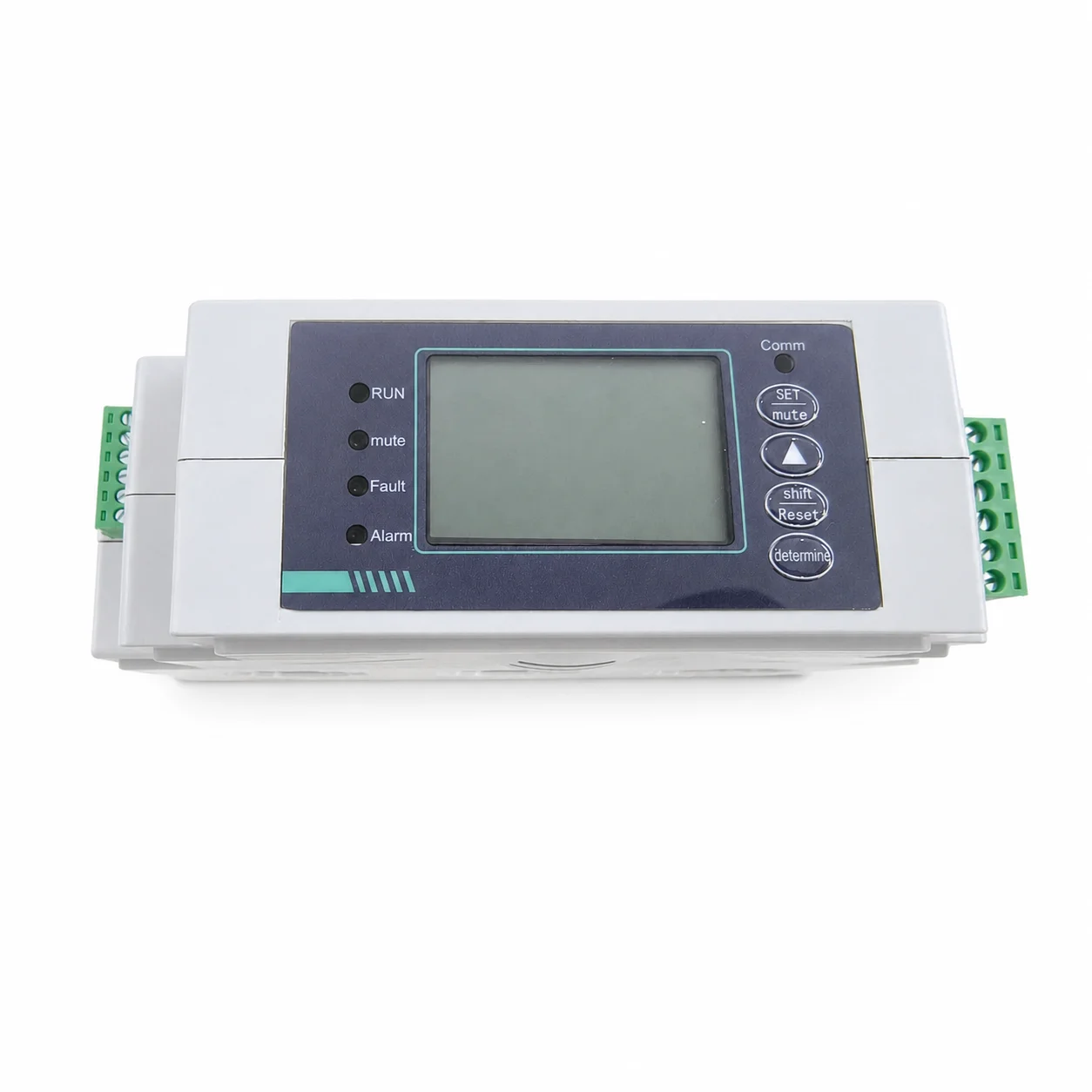

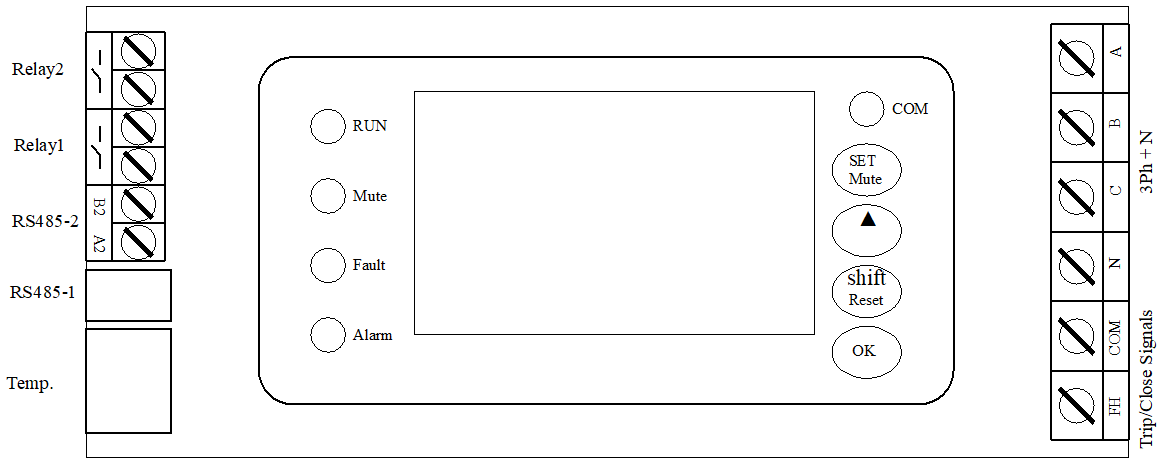

Buttons and Indicators

• Set: Enter/Exit setup mode; alarm silence key when alarming.
• UP▲:As Page-up Key when setting function code; As Add-up Key when setting value.
• Shift: As Page-down Key when setting function code, as Digit Shift Key when setting value; As Reset Key when not in setting mode.
• OK: Used for confirmation in setting mode, used for querying when not in setting
• Running: Indicates the current working status;
• Communication: Indicates the current communication status;
• Alarm: Indicates the current alarm status of the controller;
• Fault: Indicates the current fault status of the controller;

Function Description of Normal Mode

Operating Instructions:

When powered on, the “Phase Voltage” is displayed. Press the “▲” key to shift between “Phase Voltage” and “Line Voltage” interface. Press the “OK” key to switch to other parameter interface.

However, when an alarm or fault happened, it will automatically jump to the “Alarm Interface” and display the alarm/fault information. After the alarm/fault solved, it will automatically back to the “Phase Voltage” interface.

Operating Parameter Description: (Images need to be added)

• Phase voltage/line voltage display interface (press the OK button to switch); Three-phase current display interface.
• Three-phase active power, reactive power, and apparent power display interface.
• Combined-phase power (active/reactive/apparent total power), power factor, frequency, and leakage current display interface;
• Display interface for total active energy and total reactive energy;
• Displays the line temperatures at the A, B, and C phase output terminals and the internal ambient temperature (Td) of the equipment.
• Current alarm/fault notification interface;
• The upper right corner of each Interfacethe current open/closed position status of the device.

Setting Instructions

• Settings Interface Description: The two digits in the upper left corner are the Function code, the upper right corner is Function Name/Item, and the main text is the function value;
• Cursor Meaning:The position where cursor flashing is switchable or editable.
• Instructions in SettingMode:
• When the Function Code is flashing, press the “▲” key or the shift key to switch between setting items in forward or reverse order;
• Pressing the OK button will switch the cursor position between the Function Code and the Value (while saving the modification);
• When the Function Value is editable, the Press the “▲” key or the shift key to set the Function Value, press the “Shift” key to change the cursor position, press “OK” key to confirm the settings, and press “Set” to exit Setting Mode.

Mode Function:

Trip: Trip and alarm upon when it reaching the set value and time both.

Alarm: Alarm upon when it reaching the set value and time both.

Closed: Neither alarms nor trips.

How to Set

Get ready to Set

Press “Set” key and enter password(00001 as default), Press “OK” Key.

Function Code 01: Voltage Ratio&Current Ratio

Function Code 01:

Voltage Ratio = Phase Voltage / 220.

*Users are strictly prohibited to set Voltage Ratio without advise from us.

Current Ratio = Rated Current / 5. For example, rated current is 250A, Current Ratio is 50(50 = 250/5). This Value is the maximum value (current transformer ratio) can be set, Please pay attention to set it according rated current.

*Users are strictly prohibited to set Current Ratio without advise from us. If the user performs an initialization operation, Please reset it according the rated current of the product or contact us, otherwise, a measured-current deviation will occur.

Function Code 02: Incoming Line Direction and Alarm

Function Code 02:

Incoming line direction: from top to bottom, from bottom to top.

Alarm: Buzzer on/off

Function Code 03: Overvoltage

Function Code 04: Undervoltage

Function Code 05: Phase loss settings

Function Code 03: Delay time:0~60S, threshold :260~300V, set according to actual conditions.

Function Code 04: Delay time:0~60S, threshold: 120~180V, set according to actual conditions.

Function Code 05: Delay time:0~6S, threshold: 0~100V, set according to actual conditions.

Function Code 06: Overload

Function Code 07: short circuit short delay

Function Code 09: Phase loss settings

Function Code 06: Overload long delay threshold Ir1: 40~100%In (default 100%In). See panel for frame current.

Function Code 07: Short-circuit short delay: 100~1000ms, short-circuit action threshold Ir2: 2~10 times Ir1. The delay time and multiplier can be adjusted according to actual needs.

Function Code 09: Delay time 1~6S, set according to actual conditions. Please turn off for non-pure three-phase loads.

Function Code 10: Current Imbalance

Function Code 11: Residual Current

Function Code 12: Over Temperature

Function Code 10: Unbalance delay: 1~3S, current imbalance action threshold 0~99%, default 20%, calculation formula (I1-I2)/I1*100%. Please turn off for non-pure three-phase loads.

Function Code 11: The leakage current threshold should be set according to the actual situation.

Function Code 12: ABC phase over-temperature threshold 60~150℃, over-temperature delay 1~60S, set according to actual conditions.

Function Code 13: Display Mode

Function Code 14: Password Change

Function Code 15: Reset kWh Counter

Function Code 13: This item is the parameter display mode in the product’s normal mode, which is divided into button switching mode, cycle display mode, and fixed display mode of various parameters. Users can set it as needed.

Function Code 14: This item is for setting up the login password modification function. Users can set it according to their actual needs (a backup should be made after setting to prevent the inability to access the settings if the password is lost).

Function Code 15: This is for resetting the kWh counter. Press the OK button to enter edit mode, press  “▲” key to select “Yes”, and then press the OK button to confirm the operation and exit this setting.

 Function Code 16: Clear Fault Records

Function Code 17: Factory Reset

Function Code 19: Communication Address

Function Code 16: This item is for clearing fault records. Press the OK button to enter edit mode, press “▲” key to select “Yes”, and press the OK button to confirm.

Function Code 17: Restoring the equipment to factory settings. Users can switch the parameter from “No” to “Yes” and then press the OK button to perform the initialization operation. After the equipment is initialized,please reset current ratio according the rated current of the product or contact us, otherwise, a measured-current deviation will occur.

Function Code 19: This item is for setting the 485 interface communication parameters. Users can set the device communication address and baud rate according to their actual needs.

Function Code 21:Relays

Function Code 21:

Mode 0 Two-way jog:

Relay 1 closes, relay 2 opens.

Suitable for applications requiring separate control of opening and closing.

Mode 1: Two channels always open

Relay 1 opens/closes the circuit breaker; relay 2 provides an alarm output.

Applicable to AC contactors and other devices that require power to operate, and to disconnect and stop operation.

Mode 2: One path is always open, and the other is always closed.

Relay 1 is normally open – touches close to start; relay 2 is normally closed – touches open to stop.

Suitable for applications requiring start and stop buttons, such as starting and stopping a motor.

The output time is fixed at 500ms in relay jog mode.

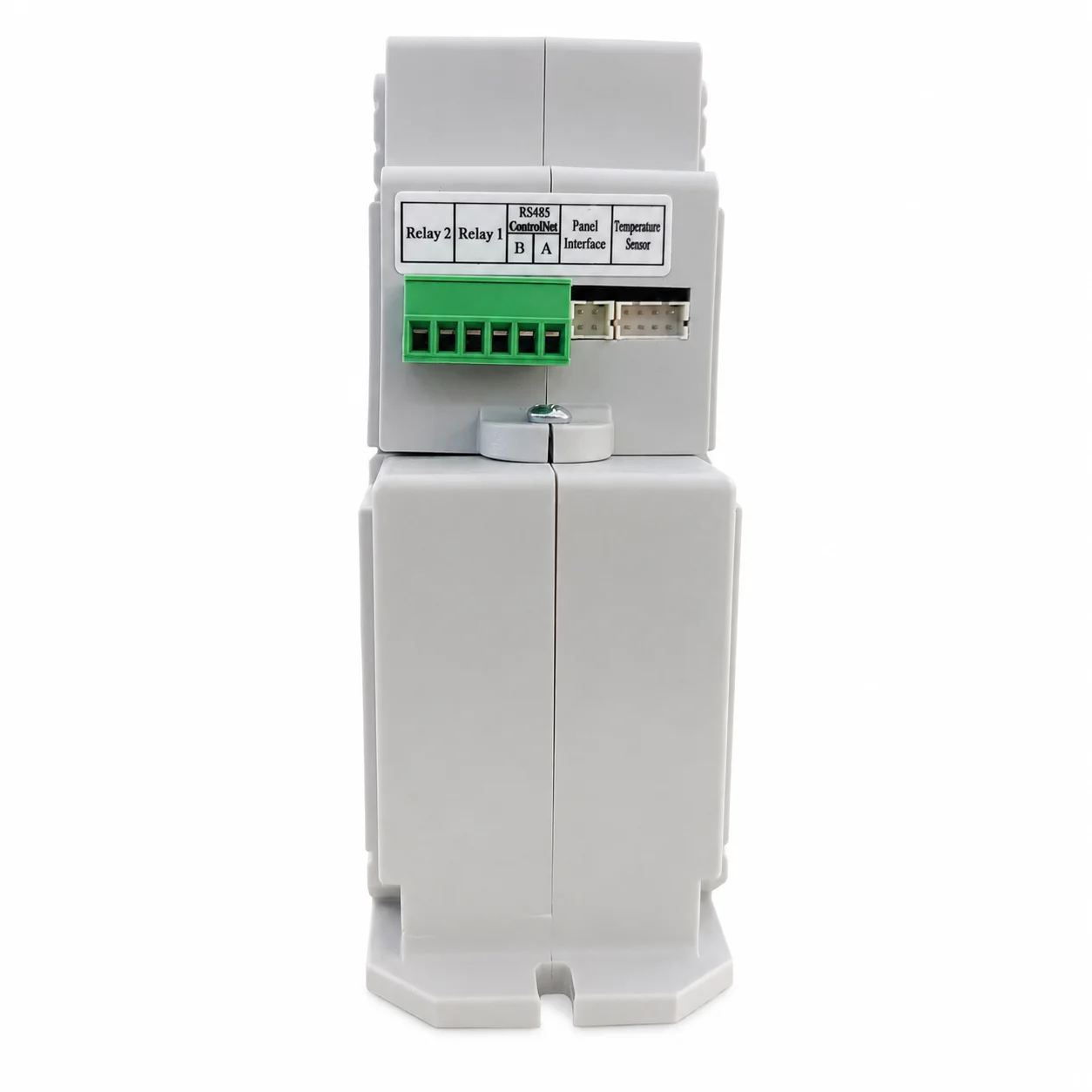

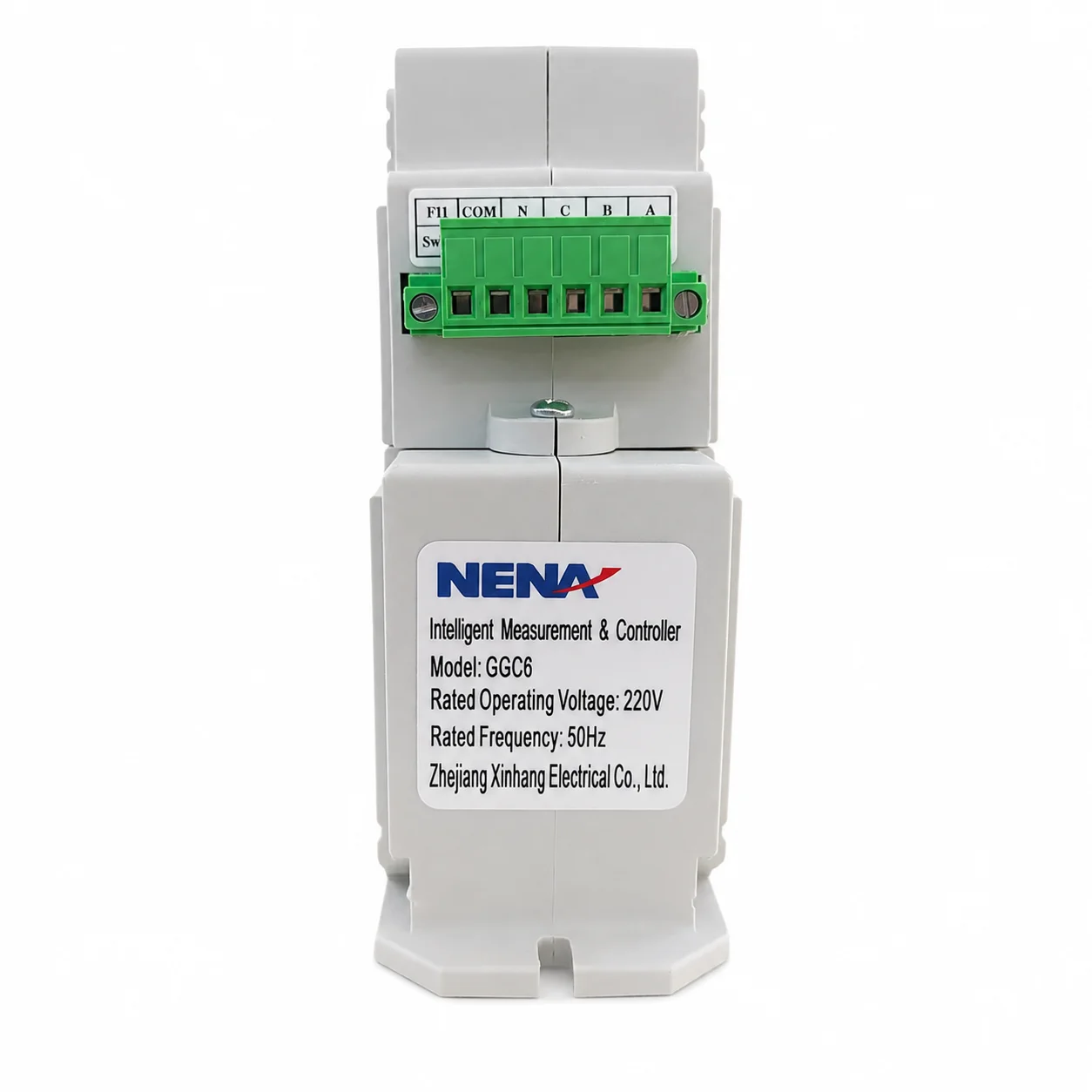

FH: Connect with the OnOff Auxiliary Switch of breaker to test the breaker “ON” or “OFF”.
ABCN: Connect with 3P+N wire input.
RS485 1: Connect with dedicated control panel.
RS485 2: Connect with the communicate port 1 of dedicated Multichannel Gateway.
Temperature sensing port: connect attached 4 temperature sensing wires to 3P+N input correspondingly.(ps:temperature sensing wire“N”may be left floating.)

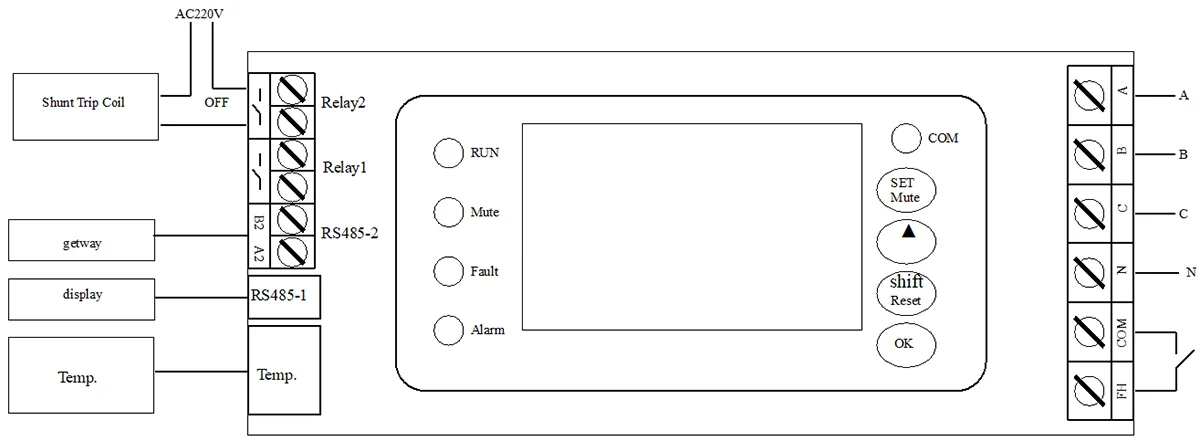

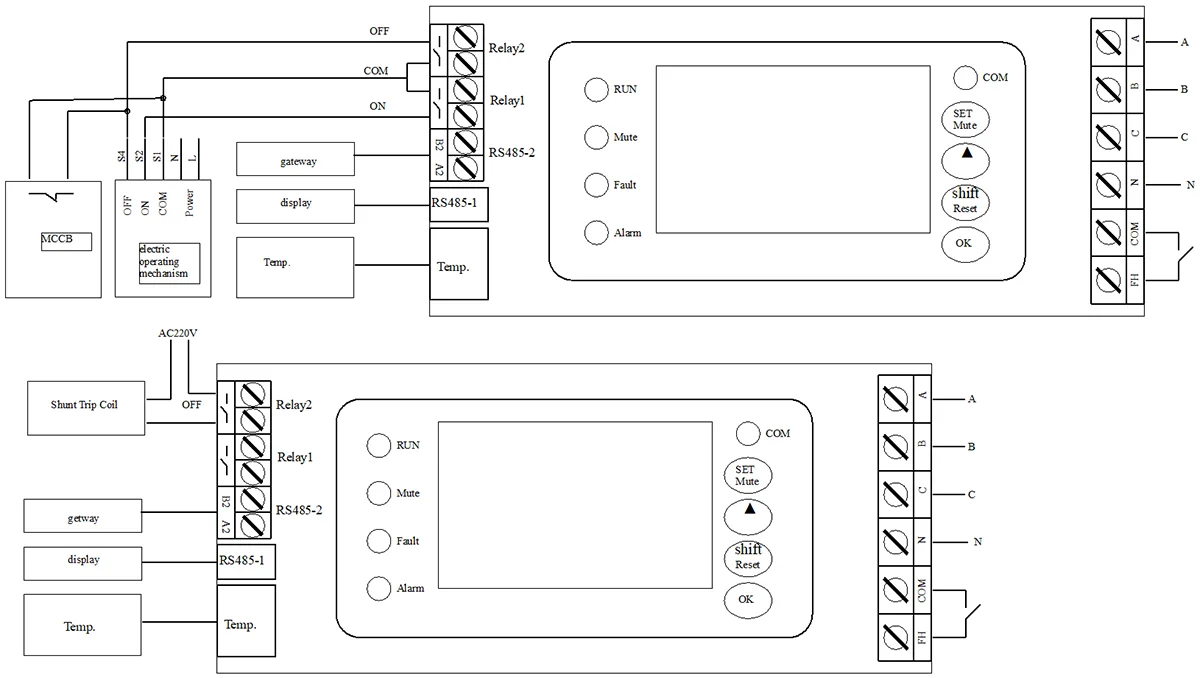

Wiring Schematic Diagram

wiring Direction of Current Transformer

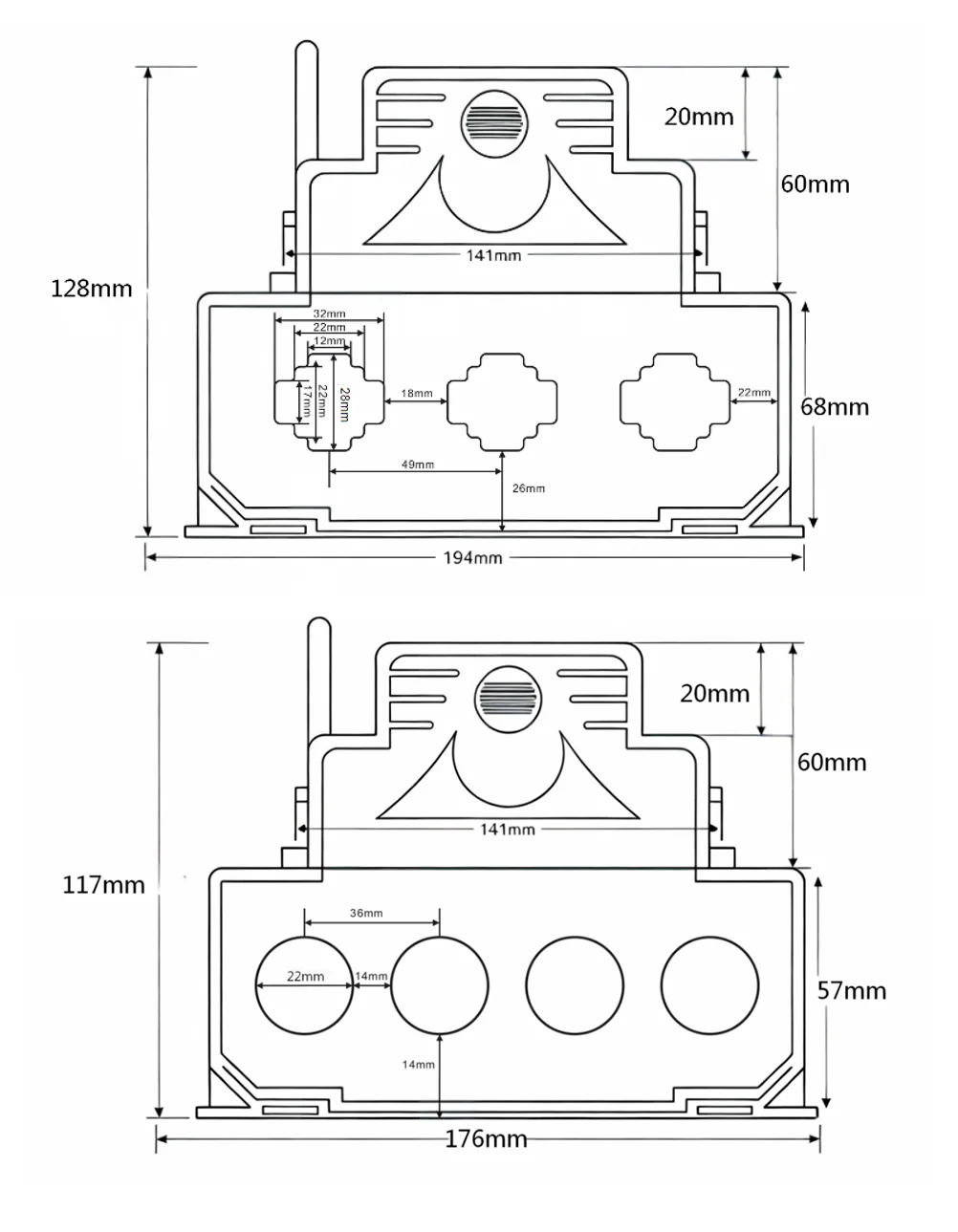

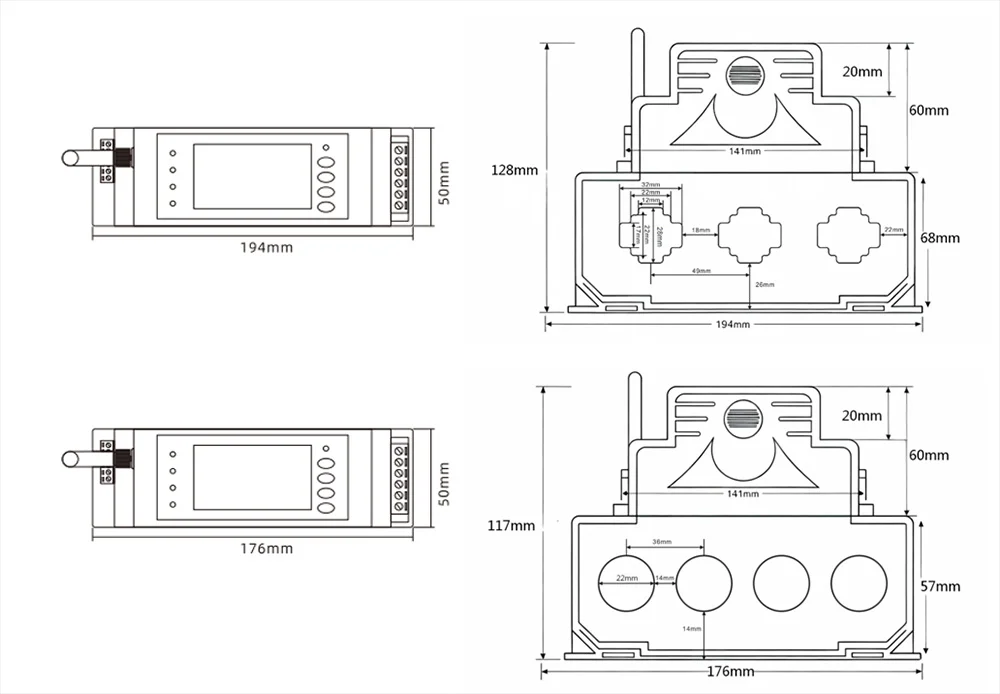

3Pole Copper Busbar Version, Copper busbar: 32×28 mm, Maximum current per wire: 630 A

4Pole Cable Version, diameter: 22 mm, Maximum current per wire: 250 A

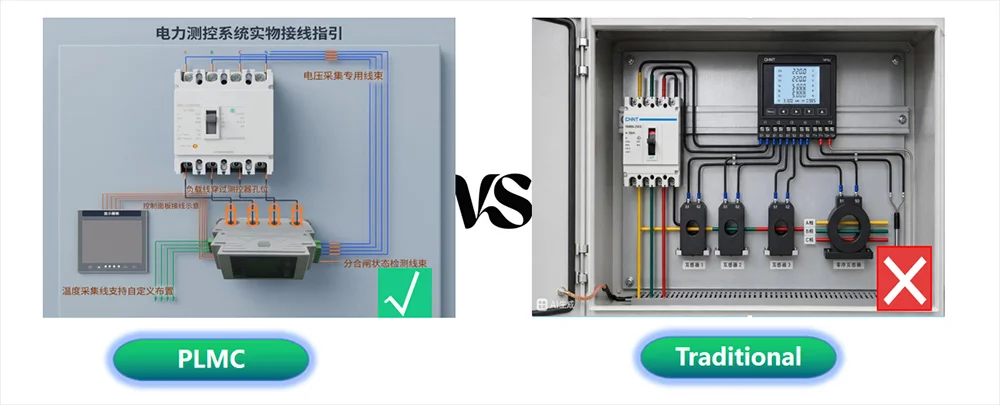

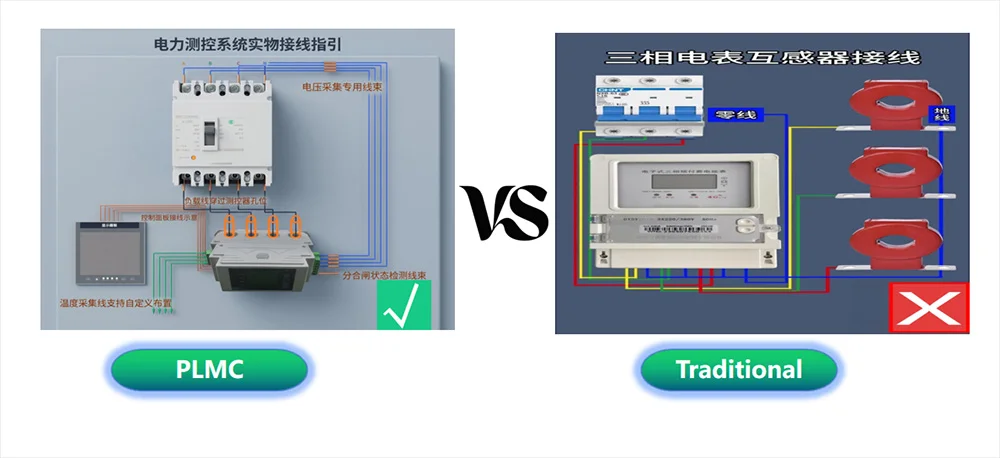

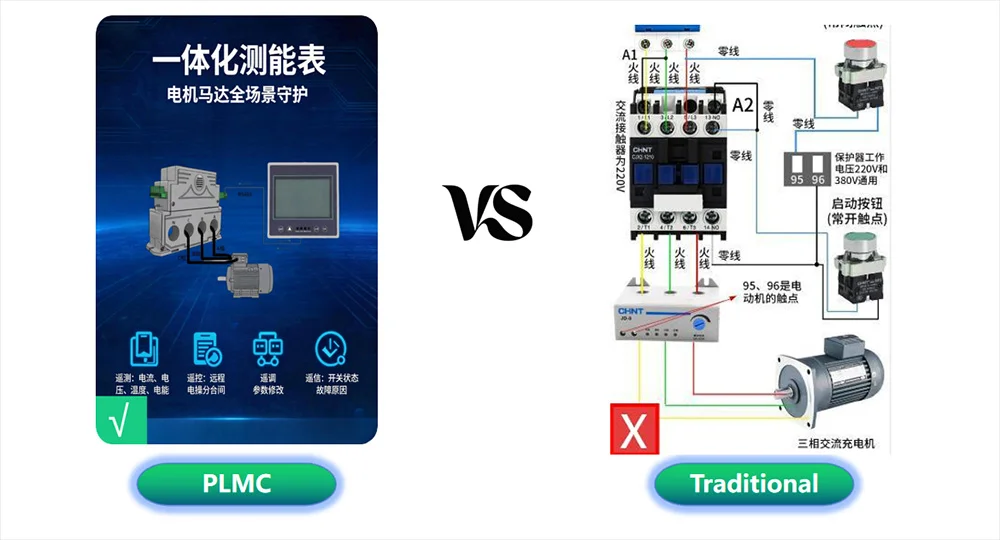

Function	Integrated Energy‑measuring Meter	CM1 + Transformer + Multi‑function Meter
Accuracy	Voltage & current: Class 0.2; Active energy: Class 0.5	Voltage & current: Class 1; Measurement accuracy: Class 2 or none
Real‑time Monitoring Function	Built‑in sensors and monitoring modules for real‑time collection of electrical parameters including voltage, current, power, temperature and leakage current. Data can be transmitted to cloud or management platform via communication module for remote viewing and analysis.	No monitoring function. Protection actions are triggered only upon faults. Grid operating status data is not available.
Protection Function	Integrated protection functions including over‑current, short‑circuit, overload, over‑voltage, under‑voltage, over‑temperature and earth‑leakage. Flexible protection parameter configuration is mostly supported.	Generally only basic over‑current and short‑circuit protection. Limited protection scope with non‑adjustable parameters.
Remote Control & Management	Remote switch on/off, parameter configuration and event log query are available via RS‑485, 4G and other communication interfaces, which greatly improves O&M efficiency and flexibility.	Only local manual operation supported. No remote control function, resulting in low operation efficiency.
Event Log & Data Analysis	Event recording function stores historical data such as alarms and trips to facilitate fast fault location. It also provides energy statistics and trend analysis for energy‑efficiency optimization.	No fault or power‑consumption data recording. Manual troubleshooting is required after faults, which is time‑consuming and labor‑intensive.
