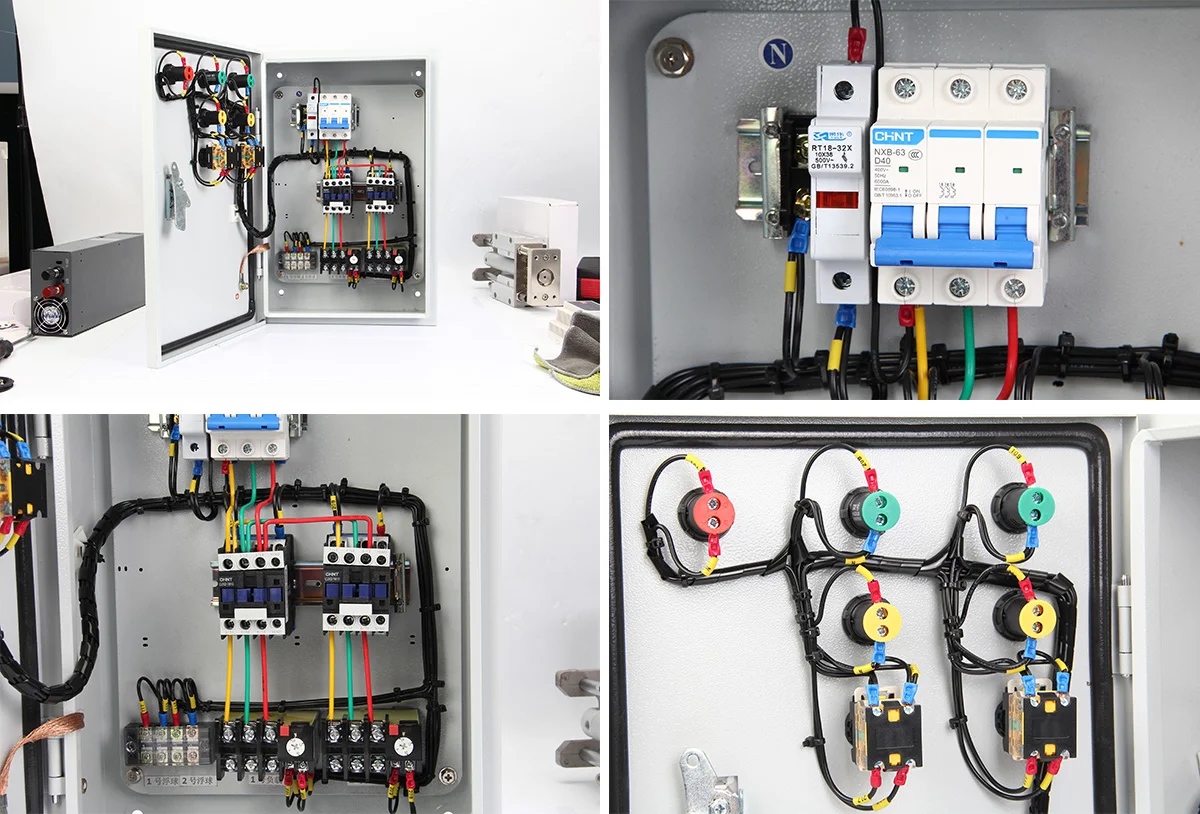

One-to-One Water Pump Control Box
Application Scenarios Suitable for high-rise water tank water supply, basement sewage drainage, constant pressure water supply with pressure tank. Core Features Two operation modes: Manual Mode & Automatic Mode Three optional control logics: Drainage Mode, Water Supply Mode Built-in safety protection: Overload protection, Phase loss protection Supports float switch as level signal…
Application Scenarios
Suitable for high-rise water tank water supply, basement sewage drainage, constant pressure water supply with pressure tank.
Core Features
Two operation modes: Manual Mode & Automatic Mode
Three optional control logics: Drainage Mode, Water Supply Mode
Built-in safety protection: Overload protection, Phase loss protection
Supports float switch as level signal sensor
Clear status indicator lights: Power indicator, Running indicator
Working Instruction
Manual Mode: Operate pump start and stop via panel buttons for on-site testing and maintenance.
Automatic Mode: The pump automatically starts or stops following signals from float switch.
Drainage Mode: Auto pump out accumulated water when water level rises.
Water Supply Mode: Auto fill water into tank when liquid level drops.
Advantages
Compact cabinet, simple wiring and low failure rate
All-in-one protection avoids motor burnout
Dual-mode design fits both water supply and drainage projects
Easy wall-mounted installation
Custom Options
Custom working voltage (Single-phase 220V / Three-phase 380V); Multiple matched power ranges; Optional dry contact alarm output for remote monitoring.
Note: This model controls one pump only without standby pump. For projects requiring uninterrupted water operation, select our 1-duty-1-standby dual pump control box.
