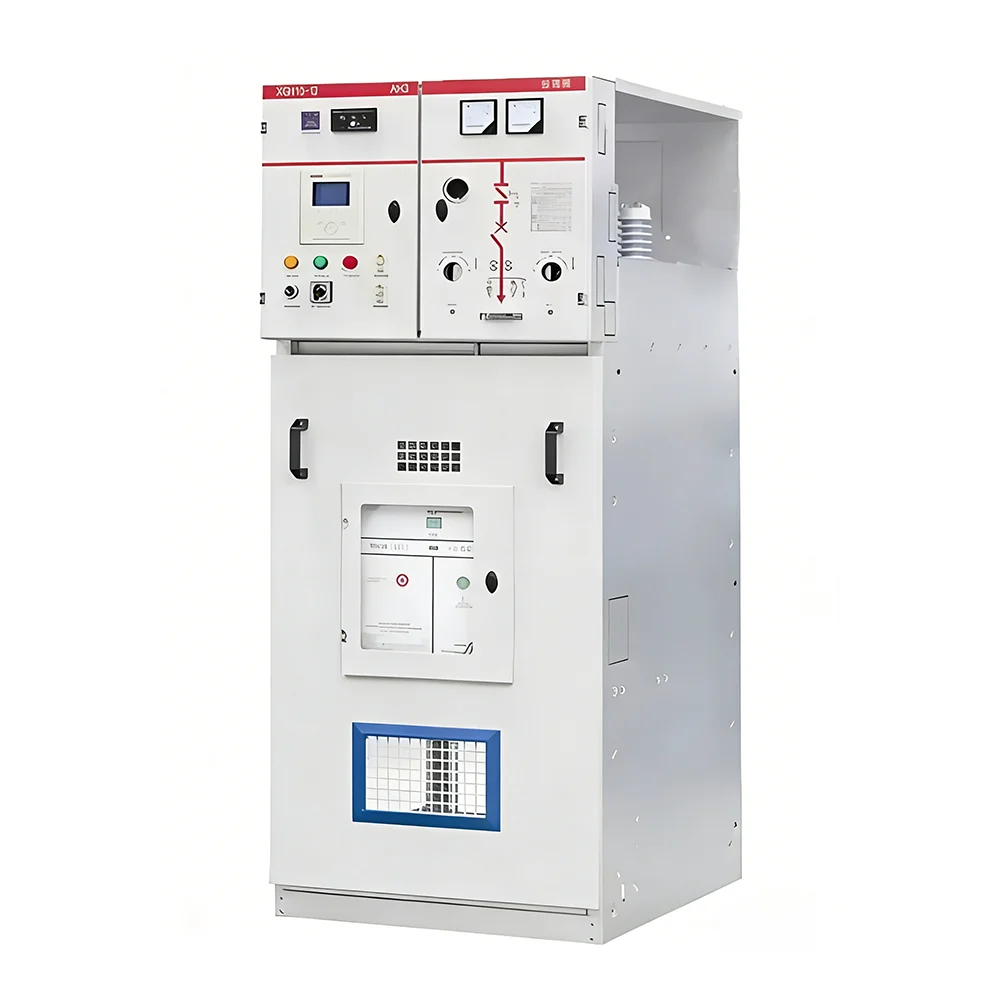

XGN15A-12（Vs1） Unit-Type Ac Metal-Enclosed Ring Network Switchgear

Key Features and Advantages

1. High Reliability and Safety
The VS1 Unit-type AC Metal-enclosed Ring Network Switchgear is designed with robust insulation and protection mechanisms, ensuring safe and reliable operation in harsh environments. With air insulation and a vacuum circuit breaker, it relatively small the risk of electric faults and enhances overall system stability.

2. Compact and Modular Design
A key advantage of the VS1 Unit-type AC Metal-enclosed Ring Network Switchgear is its compact and modular structure. The design allows for easy expansion and flexible installation, making it ideal choice for space-constrained environments such as urban substations and high-density residential areas.

3. Environmental Adaptability
The VS1 Unit-type AC Metal-enclosed Ring Network Switchgear operates efficiently within a temperature range of -25°C to 40°C and at altitudes up to 2000m. It maintains good performance performance even in high humidity conditions, with a the largest daily relative humidity of 95% and a monthly average of 90%. Furthermore, it is designed to withstand environments free from corrosive or flammable gases, excessive dust, and severe violations.

Performance Advantages

1. Enhanced Electrical Insulation
Equipped with air insulation and a high-voltage vacuum circuit breaker, the VS1 Unit-type AC Metal-enclosed Ring Network Switchgear significantly reduces electric breakdown risks. The vacuum circuit breaker ensures fast and reliable arc extinguishing, improving the overall safety and longevity of the system.

2. Easy Maintenance and Long Service Life
The design of the VS1 Unit-type AC Metal-enclosed Ring Network Switchgear prioritizes ease of maintenance. The vacuum circuit breaker requires relatively small upkeep compared to traditional circuit breakers, while the metal-enclosed structure provides good durability, ensuring a prolonged operational lifespan.

3. High Fault Protection Capability
By incorporating advanced fault detection and isolation mechanisms, the VS1 Unit-type AC Metal-enclosed Ring Network Switchgear reduces downtime and enhances system resilience. It quickly isolated faults, preventing the spread of electrical disorders within the power network.

4. Seamless Integration with Automation Systems
This switchgear supports smart grid applications and integrates seamlessly with automated power distribution systems. The VS1 Unit-type AC Metal-enclosed Ring Network Switchgear allows remote monitoring and control, enhancing operational efficiency and reducing the need for manual intervention.

Application Scenarios

– Urban and Rural Power Distribution: Enhancing grid stability in residential areas, commercial districts, and industrial zones.
– Industrial and Mining Enterprises: Provide safe and efficient power distribution in factories and mining sites.
– Healthcare and Education Facilities: Ensuring uninterrupted power supply to hospitals, schools, and research centers.
– High-rise Buildings and Infrastructure Projects: Offering reliable energy management in modern urban developments.
– Pre-installed Substations: Ideal for integration into modular and mobile substations, supporting rapid deployment.

The VS1 Unit-type AC Metal-enclosed Ring Network Switchgear is a versatile, reliable, and high-performance solution for modern power distribution needs. Its compact design, advanced fault protection, and seamless integration with automation systems make it ideal choice for various applications.

Technical parameters
