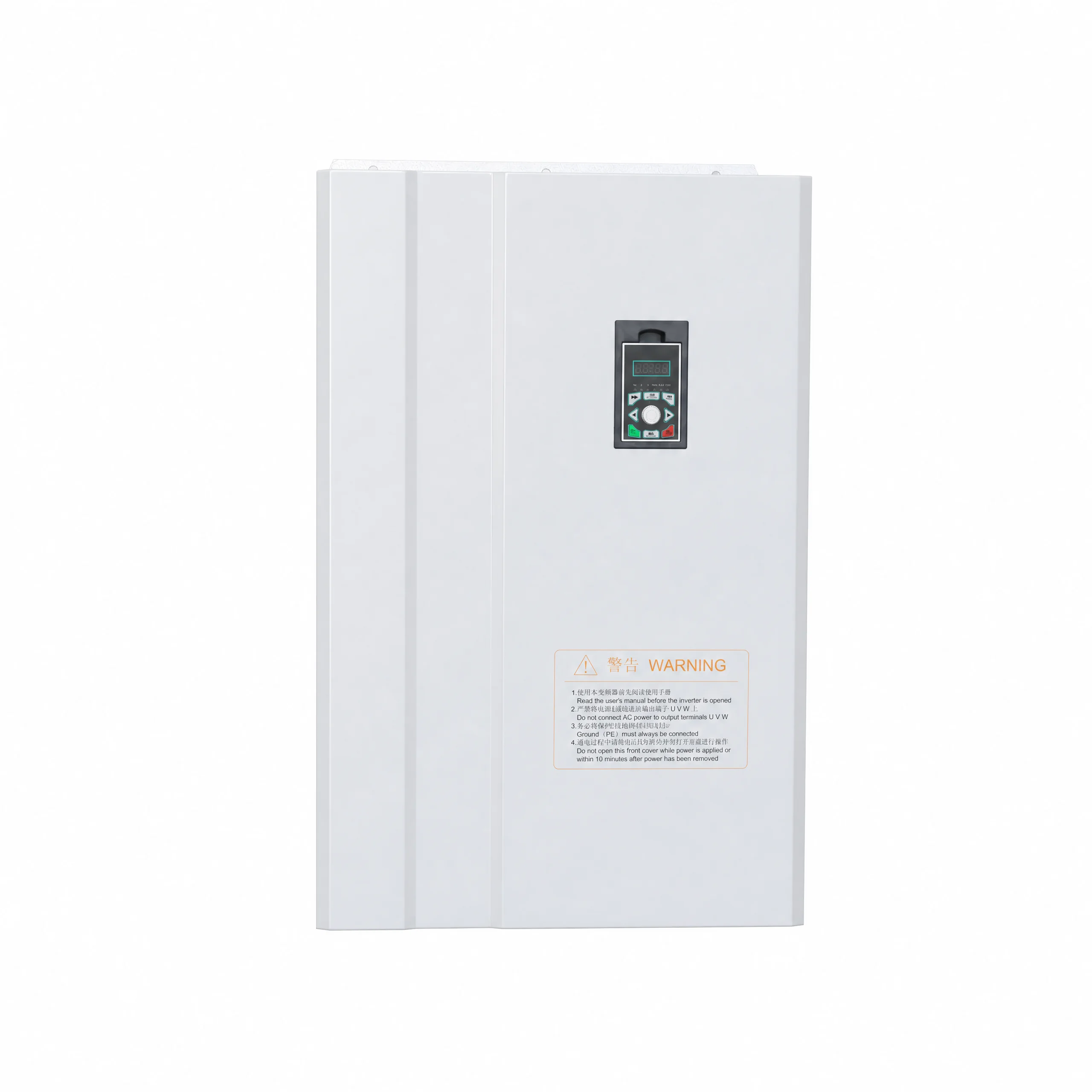

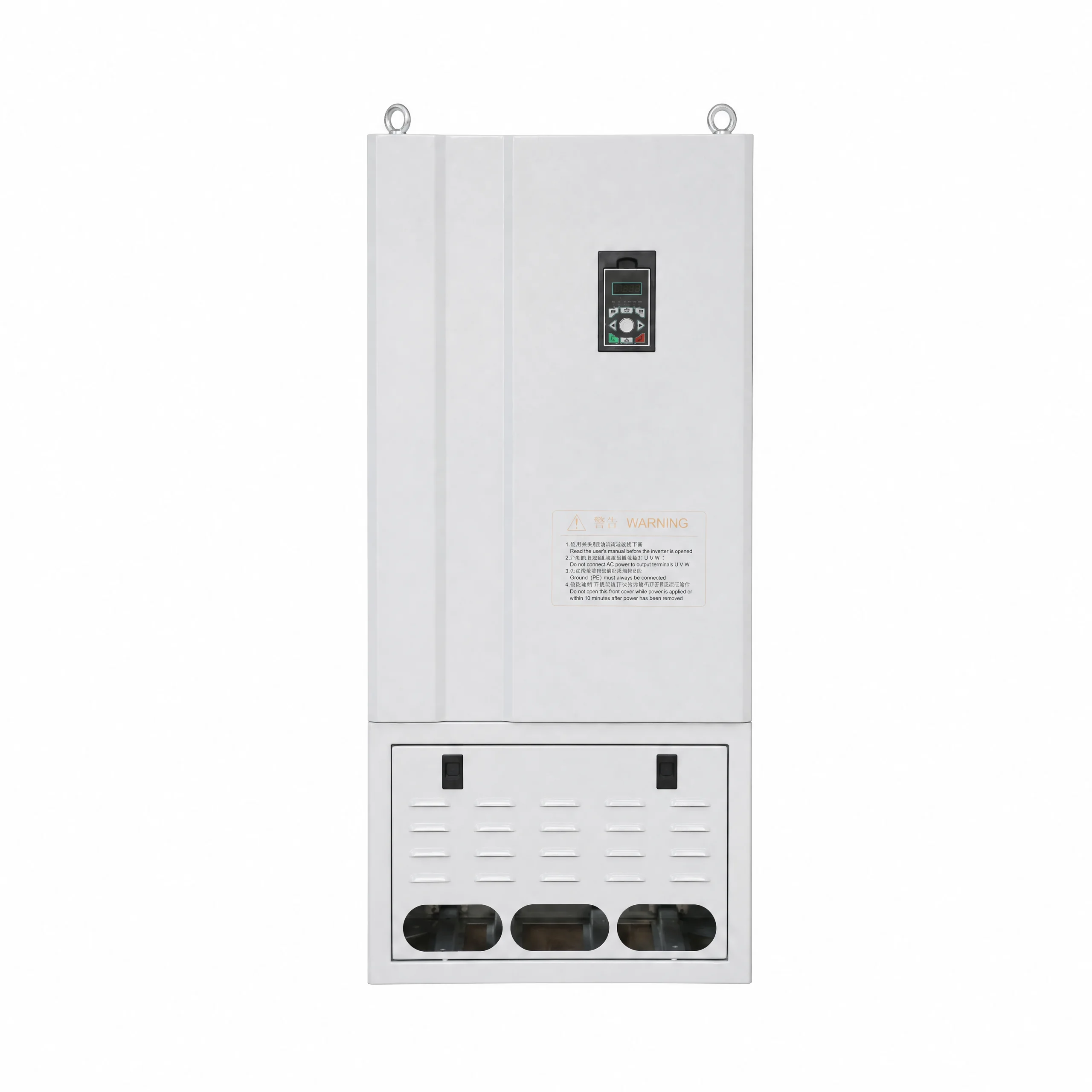

Built-in EMC Filter General Purpose Inverter
The NH820 Series high-power general-purpose vector VFD is designed to drive and control asynchronous motors stably for heavy-duty applications. It comes with powerful built-in functions and outstanding operational stability, meeting a full range of major international standards and certification requirements. Equipped with a dedicated motor-control DSP chip as its core control unit,…
The NH820 Series high-power general-purpose vector VFD is designed to drive and control asynchronous motors stably for heavy-duty applications. It comes with powerful built-in functions and outstanding operational stability, meeting a full range of major international standards and certification requirements.
Equipped with a dedicated motor-control DSP chip as its core control unit, this inverter realizes high-performance and high-precision motor regulation. It supports versatile frequency source superposition and flexible switching modes, advanced PID algorithms, 15-step multi-speed control, automatic program operation, wobble frequency control and speed tracking functions.
The 90–280kW model further upgrades reliability and environmental adaptability for heavy-load working conditions. Optimized user operation and industry-specific design deliver enhanced functions, wider application compatibility and consistent stable performance.
It is widely applied in papermaking, wire drawing, machine tools, textile, packaging, food processing industries, as well as large fans, water pumps and heavy-duty automated production equipment.
- It can avoid over current faults caused by direct starting and achieve smooth starting
- When the demand for motor torque is low, the excitation current is reduced according to the load current
- Maximize the efficiency of the motor
- Reduce motor losses and energy consumption
- The three points of the curve can be adjusted
- There are three curve – setting methods: The linear curve is suitable for ordinary constant – torque loads. The multi – point curve is suitable for loads of dehydrators and centrifuges. The square – law curve is suitable for loads of fans and pumps.The three points of the curve can be adjusted
- The most suitable curve can be set according to the torque characteristics of the equipment to achieve better energy -saving results
- It can achieve smooth starting and avoid over – current faults caused by direct starting
- It is more suitable for the use of fans and pumps
| Item | Specification |
|---|---|
| Basic functions | Output frequency：0 – 500Hz |
| Carrier frequency：0.8kHz ~ 12kHz, the carrier frequency can be automatically adjusted according to the load characteristics | |
| Frequency resolution：0.01Hz | |
| Control mode：V/F control | |
| Torque characteristics：With torque compensation and slip compensation, starting torque: G – type machine 0.5Hz/150%, P – type machine 0.5Hz/100% |
|
| Torque boost：Automatic torque boost; Manual torque boost 0.1% ~ 30.0% | |
| Overload capacity：G – type machine: 150% of rated output current for 60S P – type machine: 130% of rated output current for 60S |
|
| Speed regulation range：1:100 | |
| Speed stability accuracy：±1% | |
| Automatic voltage regulation (AVR)：When the grid voltage changes, it can automatically maintain a constant output voltage | |
| Over – voltage and over – current stall control：Automatically limits the current and voltage during operation to prevent frequent over – current and over – voltage tripping | |
| Fast current – limiting function：Minimizes over – current faults to protect the normal operation of the frequency converter | |
| V/F curve：Four modes: linear type; multi – point type; complete V/f separation; incomplete V/f separation | |
| Acceleration and deceleration curves：Linear or S – curve acceleration and deceleration modes; four acceleration and deceleration times; acceleration and deceleration time range: 0.1 ~ 6500.0s | |
| DC braking：DC braking frequency: 0.00Hz ~ maximum frequency, braking time: 0.0s ~ 36.0s, braking action current value: 0.0% ~ 100.0% | |
| Simple PLC, multi – speed operation | |
| Jog control：Jog frequency range: 0.00Hz ~ 50Hz; jog acceleration and deceleration time: 0.0s ~ 6500.0s | |
| Up to 16 – speed operation can be achieved through the built – in PLC or control terminals | |
| Built – in PID：It can easily implement a process – control closed – loop control system | |
| Operating characteristics | Operating command channel：Three channels: given by the operation panel, given by the control terminals, given by the serial communication port. It can be switched in various ways |
| Frequency source：Ten frequency sources: given by panel knob, given by operation panel, given by analog voltage, given by analog current, given by RS485 communication, multi – speed, PID, simple PLC, which can be switched in various ways | |
| Auxiliary frequency source：Ten auxiliary frequency sources. It can flexibly achieve auxiliary frequency fine – tuning and frequency synthesis | |
| Display and keyboard operation | Input terminals：Six digital input terminals, one of which can be used as a high – speed pulse input. Two analog input channels, AI1: input range 0 ~ +10V, AI2: input range 0 ~ +10V/0 – 20mA |
| Output terminals：One high – speed pulse output terminal, outputting square – wave signals from 0kHz ~ 50kHz, which can realize the output of physical quantities such as set frequency and output frequency One digital output terminal One relay output terminal Two analog output terminals, AO2: 0V ~ 10V, AO1: 0V ~ 10V/0 – 20mA, which can indicate output frequency/current/voltage/frequency command/speed/power factor signal output |
|
| LED display：It is equipped with 8 function keys, a 5 – digit 7 – segment LED, and 5 status LED indicators. It can perform forward rotation, reverse rotation, reset, stop, jog, as well as parameter setting and display |
|
| Protection characteristics | Protection function：Motor short – circuit detection upon power – on, output phase – loss protection, over – current protection, over – voltage protection, under – voltage protection, over – heat protection, overload protection, etc |
| Environment | Application place：Indoors, not directly exposed to sunlight, free from dust, corrosive gases, flammable gases, oil mist, water vapor, dripping water or salt, etc |
| Altitude：Less than 1000m | |
| Ambient humidity：- 10℃ ~ + 40℃ (When the ambient temperature is between 40℃ ~ 50℃, derating operation is required) | |
| Humidity：Less than 95%RH, without water droplet condensation | |
| Vibration：Less than 5.9m/s² (0.6g) | |
| Storage temperature：- 20℃ ~ + 60℃ |
Installation dimensions of the keyboard base
Diagrams of the overall dimensions and installation dimensions of the plastic structure
| Applicable models | Rated output power (kW) | Input voltage | A (mm) | B (mm) | H (mm) | W (mm) | D (mm) | Installation aperture (mm) |
|---|---|---|---|---|---|---|---|---|
| 820/860S | 0.4~2.2 | Single‑phase 220V range: -15%~ +15% |
90 | 157 | 170 | 101 | 142 | Φ5 |
| 820/860S/860E | 0.75~2.2 | Three‑phase 380V range: -15%~ +15% |
90 | 157 | 170 | 101 | 142 | Φ5 |
| 820/860S/860E | 4~5.5 | 111 | 183 | 197 | 129 | 175 | Φ5 | |
| 820/860S/860E | 7.5 | 137 | 237 | 256 | 157 | 190 | Φ5 | |
| 820 | 11 | 137 | 237 | 256 | 157 | 190 | Φ5 | |
| 820 | 15~22 | 151 | 303 | 320 | 170 | 222 | Φ5.8 | |
| 820 | 30~37 | 205 | 366 | 380 | 218 | 235 | Φ6 |
Diagrams of the overall dimensions and installation dimensions of the sheet metal structure
| Applicable models | Rated output power (kW) | Input voltage | A (mm) | B (mm) | H (mm) | W (mm) | D (mm) | Installation aperture (mm) |
|---|---|---|---|---|---|---|---|---|
| 820/860S | 0.4~2.2 | Single‑phase 220V range: -15%~ +15% |
90 | 157 | 170 | 101 | 142 | Φ5 |
| 820/860S/860E | 0.75~2.2 | Three‑phase 380V range: -15%~ +15% |
90 | 157 | 170 | 101 | 142 | Φ5 |
| 820/860S/860E | 4~5.5 | 111 | 183 | 197 | 129 | 175 | Φ5 | |
| 820/860S/860E | 7.5 | 137 | 237 | 256 | 157 | 190 | Φ5 | |
| 820 | 11 | 137 | 237 | 256 | 157 | 190 | Φ5 | |
| 820 | 15~22 | 151 | 303 | 320 | 170 | 222 | Φ5.8 | |
| 820 | 30~37 | 205 | 366 | 380 | 218 | 235 | Φ6 |
| Applicable models | Machine type (kW) |
Overall dimensions | Installation dimensions | Installation hole diameter | |||
|---|---|---|---|---|---|---|---|
| H(mm) | W(mm) | D(mm) | H1(mm) | W1(mm) | mm | ||
| 820/860S/860E | 11‑15 | 340 | 204 | 214 | 325 | 150 | Φ6 |
| 820/860S/860E | 18.5‑22 | 360 | 224 | 214 | 345 | 150 | Φ6 |
| 820/860S/860E | 30‑37 | 380 | 262 | 220 | 360 | 192 | Φ9 |
| 820 | 45 new | 480 | 270 | 250 | 465 | 190 | Φ7 |
| 820 | 45‑75 | 450 | 330 | 259 | 430 | 240 | Φ9 |
| 860S/860E | 45‑75 | 570 | 380 | 263 | 547.5 | 240 | Φ10 |
| 860S/860E | 90‑132 | 610 | 400 | 286 | 587.5 | 240 | Φ12 |
| 860S/860E | 160‑220 | 760 | 500 | 355 | 735 | 200 | Φ12 |
| 860S/860E | 250‑400 | 862 | 750 | 455 | 832 | 250 | Φ12 |
| 820/860S | 450‑560 | 1122 | 950 | 505 | 1092 | 350 | Φ12 |
| 820/860S | 630‑750 | 1045 | 1050 | 505 | 1015 | 400 | Φ12 |
Related Products
Torque Boost General Purpose Inverter
View Details

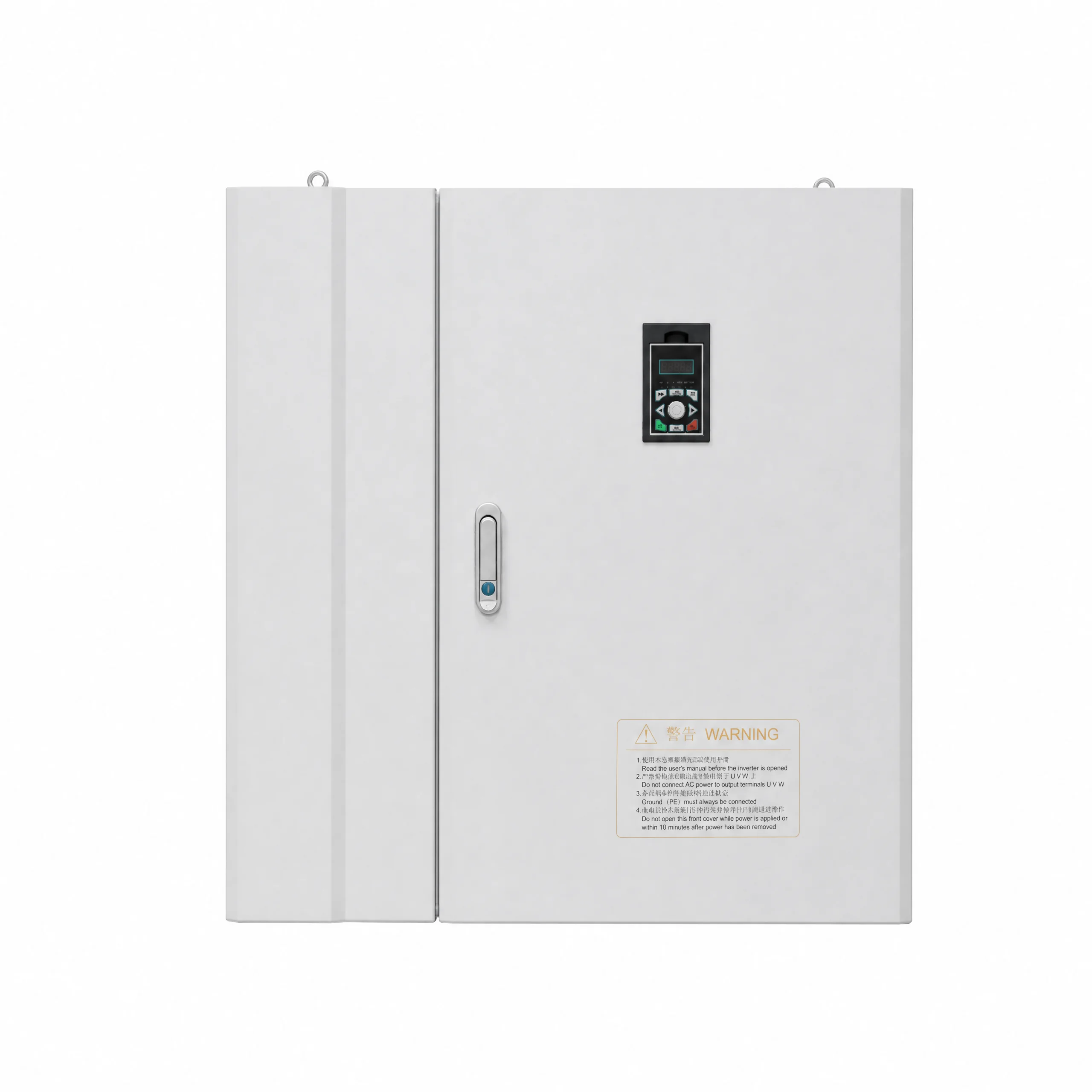

Modular Design General Purpose Inverter
View Details
Micro Size General Purpose Inverter
View Details

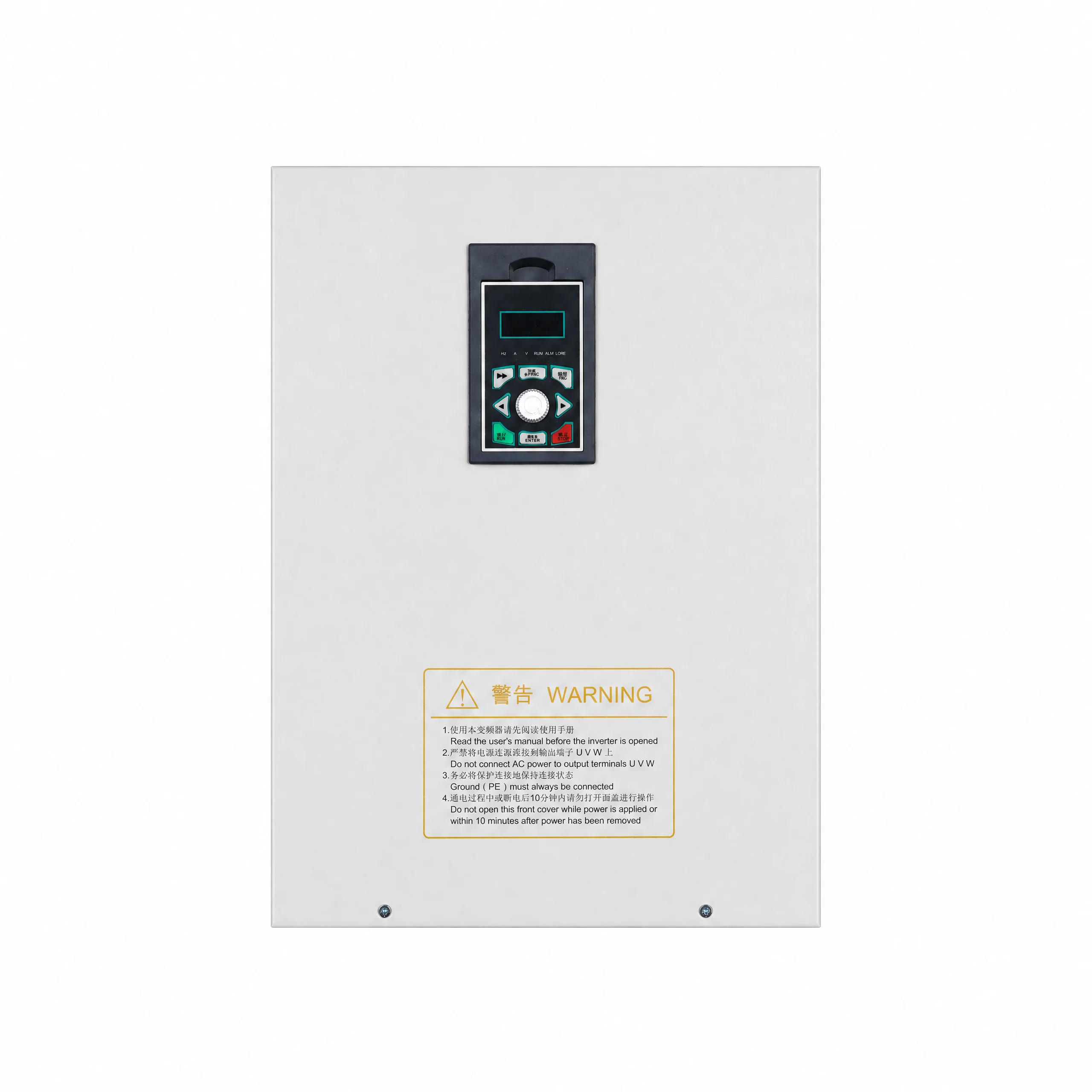

Heavy Overload General Purpose Inverter
