Ride-through Current Vector Inverter

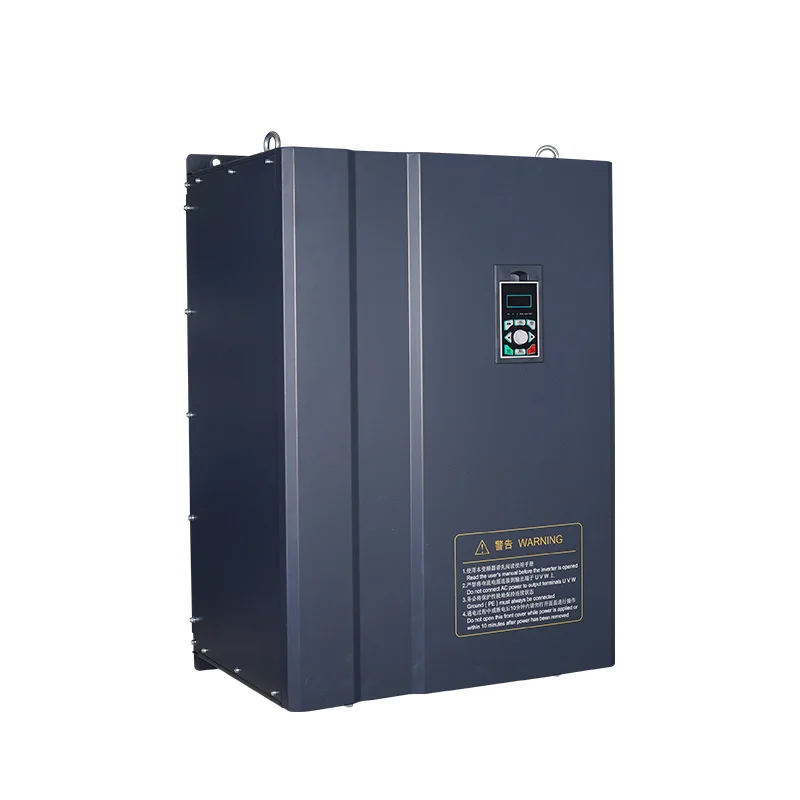

The 860S 160–220kW high-power industrial-grade current vector frequency converter features a floor-standing, integrated sheet metal chassis, specifically designed for heavy-duty complete electrical control cabinets and large transmission systems. It incorporates a high-power dedicated vector control scheme, balancing low-speed, high-torque, high-precision speed regulation with long-term heavy-load operation. It retains all standard functions of…
The 860S 160–220kW high-power industrial-grade current vector frequency converter features a floor-standing, integrated sheet metal chassis, specifically designed for heavy-duty complete electrical control cabinets and large transmission systems. It incorporates a high-power dedicated vector control scheme, balancing low-speed, high-torque, high-precision speed regulation with long-term heavy-load operation. It retains all standard functions of the series: built-in simple PLC, multi-speed automatic operation, frequency swing, meter counting, and intelligent PID closed-loop control, while adding multi-machine synchronization and load balancing control logic. The equipment comes standard with an RS485 Modbus communication interface; braking requires an external high-power independent braking unit, suitable for heavy-duty lifting and high-inertia high-speed stopping scenarios. The chassis has multiple expansion slots, allowing for the installation of isolated communication, multi-channel I/O, and all types of PG encoder expansion cards, suitable for metallurgical, mining, and large-scale chemical complete sets of equipment.
1. Reliable protection against heavy loads
The entire power circuit features multiple protections against short circuits, phase loss, over-temperature, overload, and abnormal bus voltage; it can be customized with two levels of resonance to avoid frequency hopping; it automatically limits current and suppresses voltage during heavy load deceleration to prevent frequent failures and shutdowns under high power conditions; and it features layered independent air ducts for heat dissipation, ensuring controllable temperature rise of high-power modules during continuous operation.
2. Ultra-high precision vector drive
Sensorless SVC outputs 150% starting torque at 0.25Hz; closed-loop FVC maintains speed accuracy of ±0.02% and torque control error of ±3%; real-time dynamic slip compensation minimizes speed fluctuations under heavy loads; short-term backup during instantaneous power outages ensures continuous production without interruption; 150% rated current provides overload output for 60 seconds to handle the starting impact of heavy equipment.
3. Integrated control logic for the entire process
It features 10 main frequency sources and 10 auxiliary fine-tuning sources that can be freely switched and combined, with a high-speed pulse port capable of transmitting and receiving at up to 100kHz; a built-in 16-speed automatic program that completes process cycles without the need for an external PLC; oscillating frequency, fixed-length cutting, and constant pressure/constant tension PID closed-loop control adaptable to various continuous processing production lines; and a 5-digit digital tube for customizable display of operating parameters such as voltage, current, torque, and speed.
4. Complete system expansion and compatibility
Multi-channel isolated DI/DO, dual-channel analog input/output, high-speed pulse feedback, and multiple sets of relay alarm outputs; supports acquisition of all types of encoders including differential, open-collector, UVW, and resolver; optional industrial bus communication expansion cards are available to support centralized monitoring and remote parameter modification of multiple frequency converters in a network.
| Item | Specification | |
| Control characteristics | Output frequency | 0 – 500HZ |
| Carrier frequency | 0.8kHz ~ 12kHz. The carrier frequency can be automatically adjusted according to the load characteristics. | |
| Output frequency resolution | Digital setting: 0.01Hz | |
| Analog setting: Maximum frequency × 0.025% | ||
| Control mode | Open – loop vector control (SVC) V/F control Closed – loop vector control (FVC) |
|
| Torque characteristics | With torque compensation and slip compensation, the starting torque can reach 150% at 0.25Hz (SVC) | |
| Torque control accuracy | SVC: Above 5Hz ± 5% FVC: ± 3% | |
| Over-voltage and over-current stall prevention protection | Automatically limit the voltage and current during use to prevent frequent over – voltage and over – current tripping | |
| Speed regulation range | 1:200 (SVC) 1:1000 (FVC) | |
| Speed stabilization accuracy | ±0.5% (SVC) ±0.02% (FVC) | |
| Overload capacity | 150% of the rated output current for one minute | |
| V/F curve | Four modes: linear; multi – point; complete V/f separation; incomplete V/f separation | |
| Acceleration and deceleration curve | Linear or S – curve acceleration and deceleration modes; four acceleration and deceleration times; acceleration and deceleration time range 0.1 ~ 6500.0s |
|
| DC braking | DC braking frequency: 0.00Hz ~ maximum frequency. Braking time: 0.0s ~ 36.0s, braking action current value: 0.0% ~ 100.0% | |
| Jog control | Jog frequency range: 0.00Hz ~ maximum frequency; jog acceleration and deceleration time 0.1s ~ 6500.0s | |
| Simple PLC, multi-step speed operation | Up to 16 – step speed operation can be achieved through the built – in PLC or control terminals | |
| Built – in PID | It can easily realize the process – control closed – loop control system | |
| Automatic voltage regulation (AVR) | When the grid voltage changes, it can automatically maintain a constant output voltage | |
| Fast current – limiting function | Minimize over – current faults to the greatest extent and protect the normal operation of the frequency converter | |
| Operating characteristics | Operating command channel | Three channels: given by the operation panel, given by the control terminals, given by the serial communication port. It can be switched in various ways |
| Frequency source | Ten frequency sources: given by panel knob, given by operation panel, given by analog voltage, given by analog current, given by RS485 communication, multi – speed, PID, simple PLC, which can be switched in various ways | |
| Auxiliary frequency source | Ten auxiliary frequency sources. It can flexibly achieve auxiliary frequency fine – tuning and frequency synthesis | |

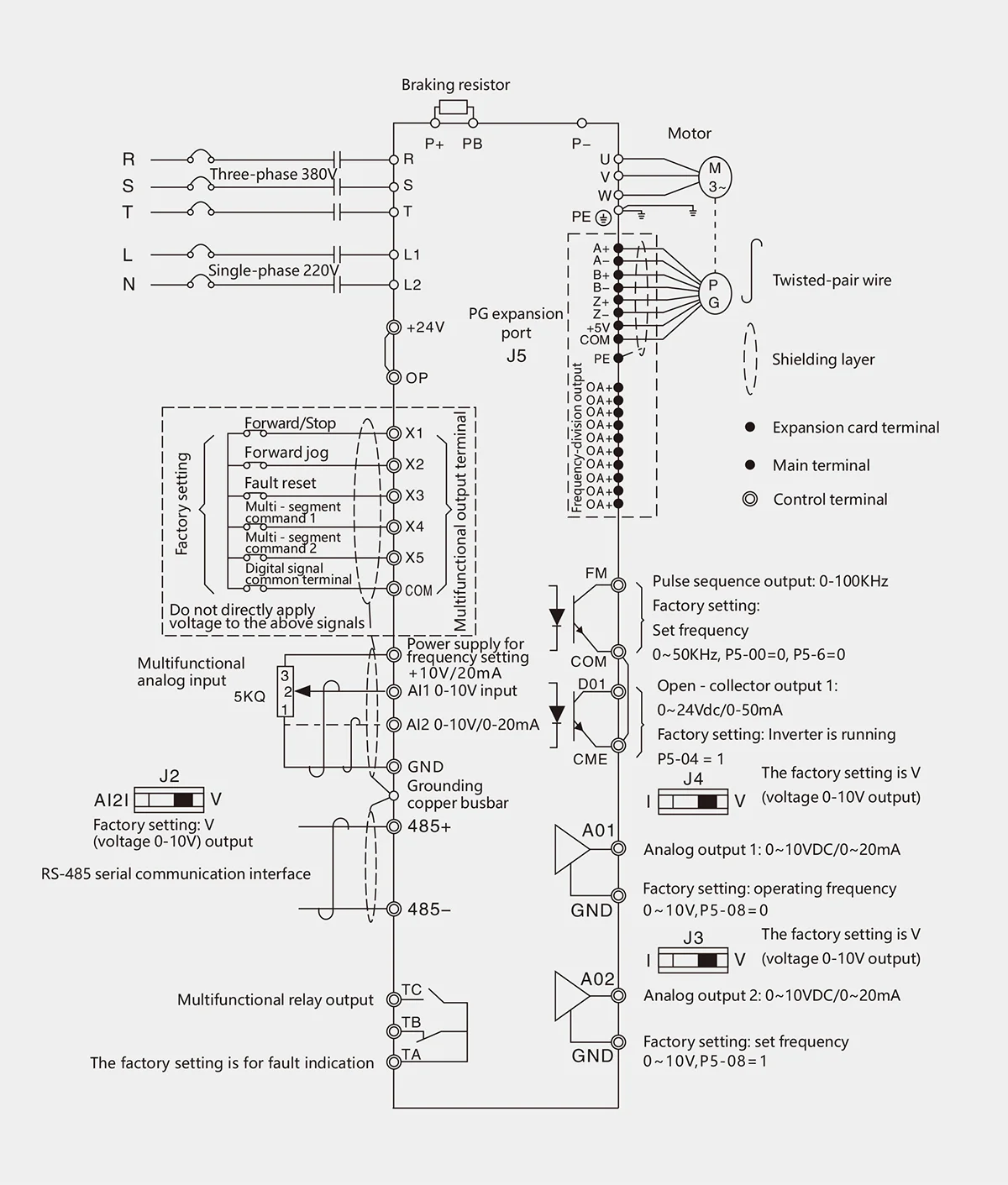

| Input terminals | Five digital input terminals, one of which can be used as a high – speed pulse input. Two analog input channels, AI1: input range 0 ~ +10V, AI2: input range 0 ~ +10V/0 – 20mA |
|
| Output terminals | One high – speed pulse output terminal, capable of outputting a square – wave signal from 0kHz ~ 50kHz, which can realize the output of physical quantities such as set frequency and output frequency. It can be selected as open – drain type One digital output terminal One relay output terminal Two analog output terminals: 0V ~ 10V/0 – 20mA, which can indicate the output of output frequency/current/voltage/frequency command/rotational speed/power factor signals |
|
| Display and keyboard operation | LED display | It is equipped with 8 function keys, a 5 – digit 7 – segment LED, and 5 status LED indicators It can perform forward rotation, reverse rotation, reset, stop, jog, as well as parameter setting and display |
| Protectioncharacteristics | Protection function | Motor short – circuit detection upon power – on, input and output phase – loss protection, over – current protection, over – voltage protection, under – voltage protection, over – heat protection, overload protection, short – circuit protection, etc |
| Othercharacteristics | Optional card | IO expansion card, communication card (isolated type), PG card |
| Multi – encoder support | Supports differential, open – drain, UVW, resolver | |
| Environment | Application place | Indoors, not directly exposed to sunlight, free from dust, corrosive gases, flammable gases, oil mist, water vapor, dripping water or salt, etc |
| Altitude | Less than 1000m | |
| Ambient humidity | – 10℃ ~ + 40℃ (When the ambient temperature is between 40℃ ~ 50℃, derating operation is required) | |
| Humidity | Less than 95%RH, without water droplet condensation | |
| Vibration | Less than 5.9m/s² (0.6g) | |
| Storage temperature | – 20℃ ~ + 60℃ |
