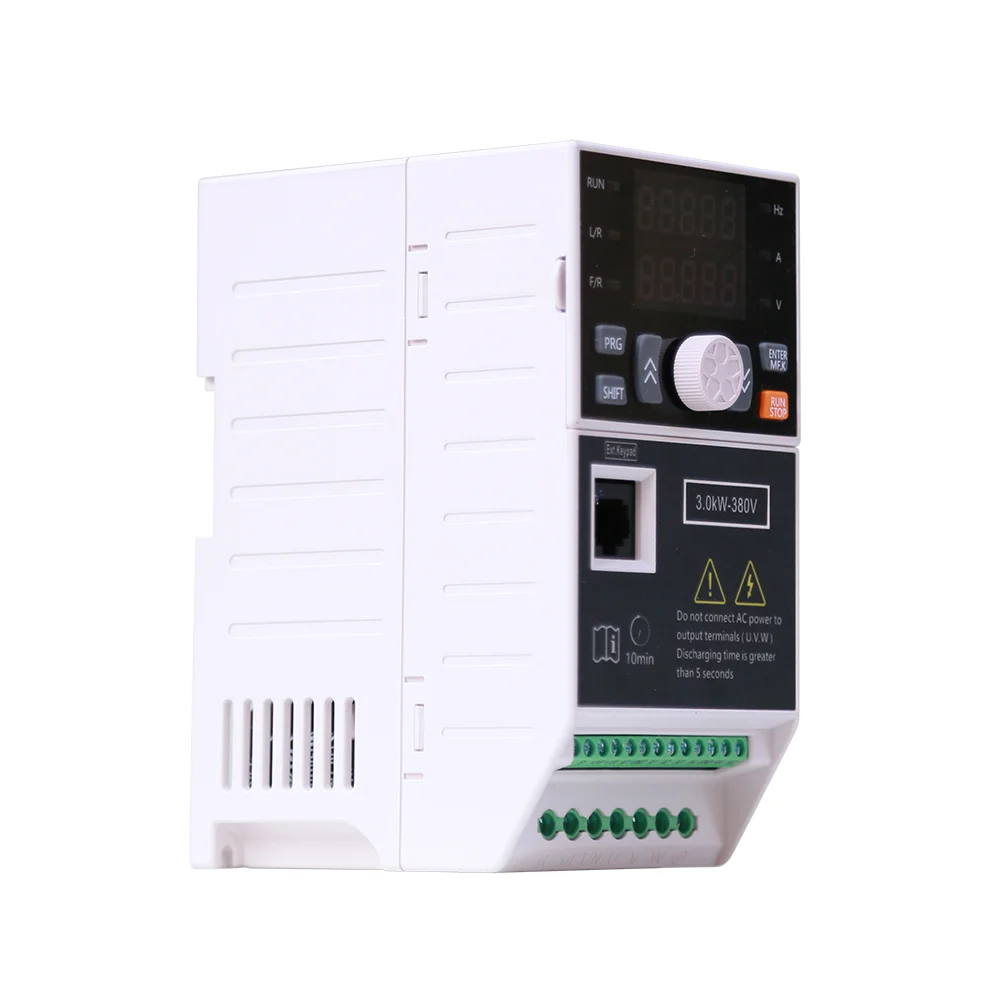

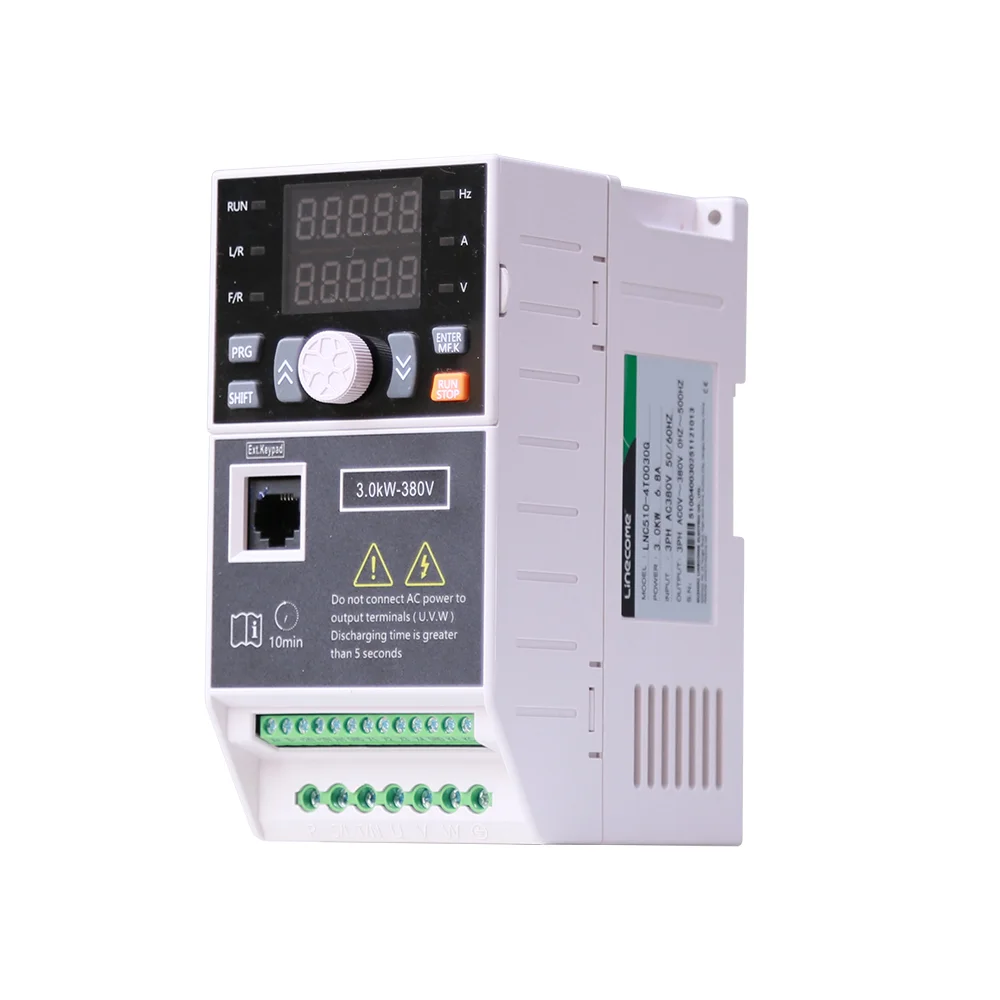

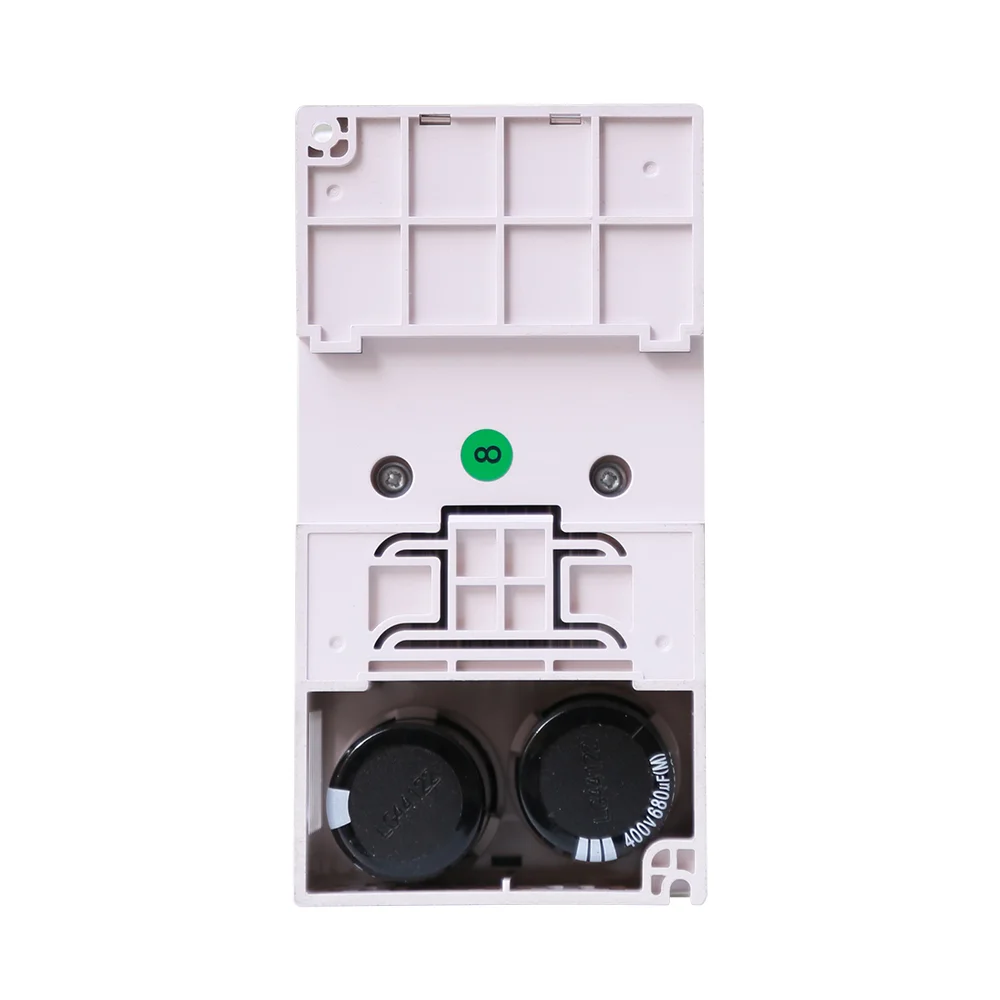

510 Series 3KW Frequency Converter
XH510 3KW three-phase frequency inverter targets continuous medium-duty industrial automation equipment, adopting the universal XH510 vector control platform optimized for long-running assembly lines. Different from 1.5KW micro VFDs, this 3KW model boosts overload endurance and heat dissipation performance, matching medium-size asynchronous motors used in packaging, chemical fiber processing and medium stone cutting…
XH510 3KW three-phase frequency inverter targets continuous medium-duty industrial automation equipment, adopting the universal XH510 vector control platform optimized for long-running assembly lines. Different from 1.5KW micro VFDs, this 3KW model boosts overload endurance and heat dissipation performance, matching medium-size asynchronous motors used in packaging, chemical fiber processing and medium stone cutting machines.
Equipped with dual 5-digit LED dual-display panel, operators can monitor set frequency, output current and fault alarm codes simultaneously without switching display pages. RS485 Modbus communication is pre-installed to realize centralized speed control for multi-motor production lines. Braking unit is optional for equipment needing frequent forward-reverse switching.
Core Performance Highlights
150% rated output current overload capacity lasting 60s, stable operation under short-term impact load of packaging conveying lines
Linear & S-type acceleration/deceleration curves, adjustable 0.1–6500s ramp time, prevents material slipping during fast start-stop
AVR automatic voltage stabilization system, maintains constant output voltage when grid voltage fluctuates 323V–437V, suitable for factories with unstable power supply
4 digital input terminals + 1 analog AI terminal (voltage/current switchable), 1 relay & AO analog output, flexible peripheral sensor signal access
| VFD model | Power capacity (kVA) | Input current (A) | Output current (A) | Applicable motor (KW) |
|---|---|---|---|---|
| Single-phase power supply: 220V ±10%, 50/60Hz, actual permissible range: AC 198V – 242V | ||||
| XH510-2S0007G | 1.5 | 8.2 | 4.0 | 0.75 |
| XH510-2S0015G | 3.0 | 14.0 | 7.0 | 1.5 |
| XH510-2S0022G | 4.0 | 23.0 | 9.6 | 2.2 |
| Three-phase power supply: 380V ±15%, 50/60Hz, actual permissible range: AC 323V – 437V | ||||
| XH510-4T0007G | 1.5 | 3.4 | 2.1 | 0.75 |
| XH510-4T0015G | 3.0 | 5.0 | 3.8 | 1.5 |
| XH510-4T0022G | 4.0 | 5.8 | 5.1 | 2.2 |
| XH510-4T0030G | 5.0 | 9.0 | 6.8 | 3.0 |
| XH510-4T0037G | 5.9 | 10.5 | 9 | 3.7 |
| XH510-4T0055G | 8.9 | 14.6 | 13 | 5.5 |
| XH510-4T0075G | 11 | 20.5 | 17 | 7.5 |
| XH510-4T0110G | 17 | 26 | 25 | 11 |
| Item | Specification |
|---|---|
| Basic functions | Output frequency：0-500Hz |
| Carrier frequency：0.8kHz ~ 12kHz, the carrier frequency can be automatically adjusted according to the load characteristics | |
| Frequency resolution：0.01Hz | |
| Control mode：V/F control | |
| Torque characteristics：With torque compensation and slip compensation, starting torque: G – type machine 0.5Hz/150% | |
| Torque boost：Automatic torque boost; Manual torque boost 0.1% ~ 30.0% | |
| Overload capacity：G – type machine: 150% of rated output current for 60S | |
| Speed regulation range：1: 100 | |
| Speed stability accuracy：±1% | |
| Automatic voltage regulation (AVR)：When the grid voltage changes, it can automatically maintain a constant output voltage | |
| Over – voltage and over – current stall control：Automatically limits the current and voltage during operation to prevent frequent over – current and over – voltage tripping | |
| Fast current – limiting function：Minimizes over – current faults to protect the normal operation of the frequency converter | |
| V/F curve：Four modes: linear type; multi – point type; complete V/f separation; incomplete V/f separation | |
| Acceleration and deceleration curves：Linear or S – curve acceleration and deceleration modes; four acceleration and deceleration times; acceleration and deceleration time range: 0.1 ~ 6500.0s | |
| DC braking：DC braking frequency: 0.00Hz ~ maximum frequency, braking time: 0.0s ~ 36.0s, braking action current value: 0.0% ~ 100.0% | |
| Jog control：Jog frequency range: 0.00Hz ~ 50Hz; jog acceleration and deceleration time: 0.0s ~ 6500.0s | |
| Simple PLC, multi – speed operation：Up to 16 – speed operation can be achieved through the built – in PLC or control terminals | |
| Operating characteristics | Built – in PID：It can easily implement a process – closed – loop control system |
| Operating command channel：Three channels: given by the operation panel, given by the control terminals, given by the serial communication port. It can be switched in various ways | |
| Frequency source：Ten frequency sources: given by panel knob, given by operation panel, given by analog voltage, given by analog current, given by RS485 communication, multi – speed, PID, simple PLC, which can be switched in various ways | |
| Auxiliary frequency source：Ten auxiliary frequency sources. It can flexibly achieve auxiliary frequency fine – tuning and frequency synthesis | |

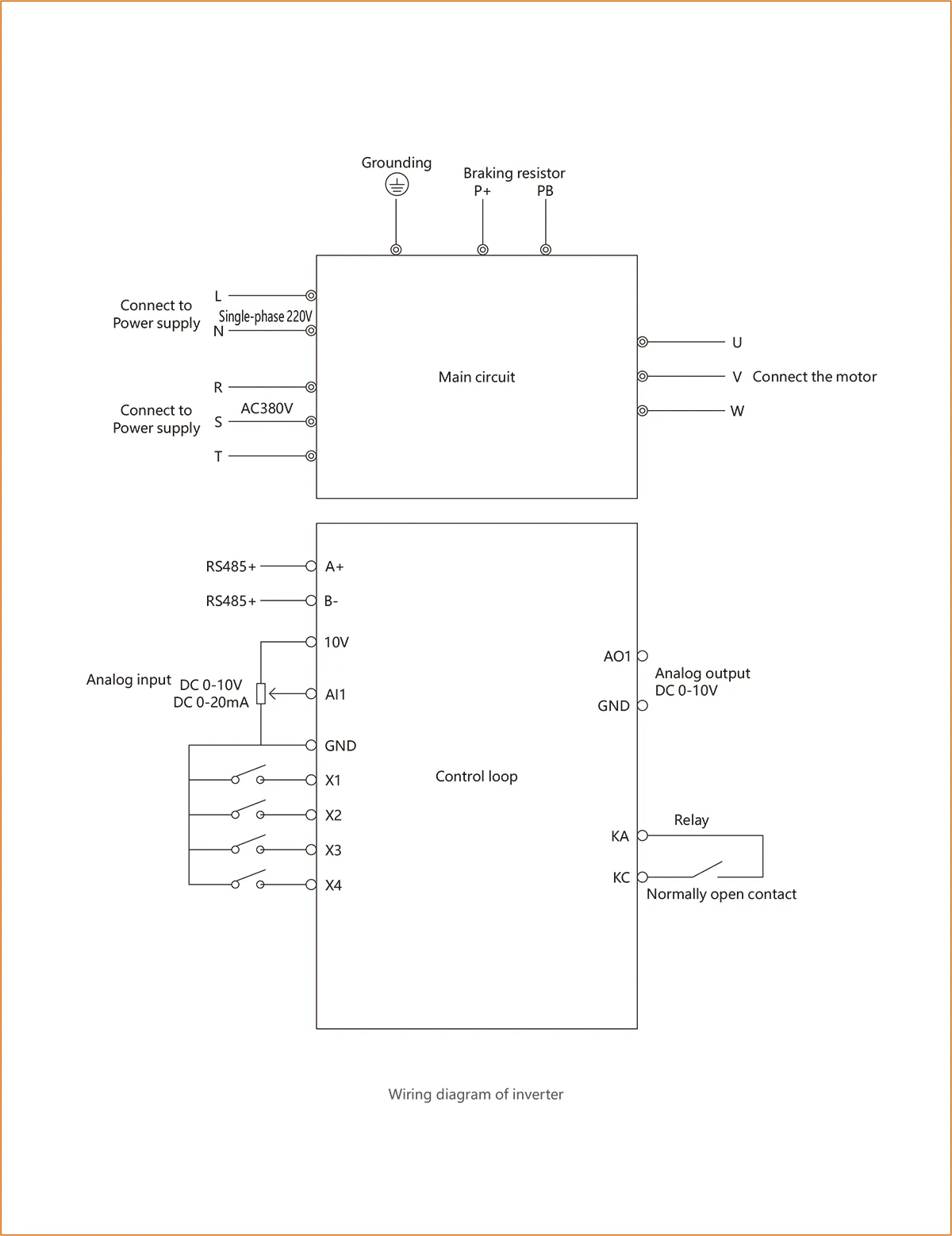

| Input terminals：4 digital input terminals, 1 analog input AI1, voltage/current switchable via parameters. | |
| Output terminals：One normally open relay output terminal One analog output terminal AO1 |
|
| Display and keyboard operation | Dual LED Display：It can perform forward rotation, reverse rotation, reset, stop, jog operation, as well as parameter setting and display.Upper LED display: 5-digit main LED display, which can show the set frequency, output frequency, various monitoring data, alarm codes, etc. Lower LED display: 5-digit auxiliary LED display, which can show the set frequency, output frequency and various monitoring data. The specific display content shall be set via parameters P7-17 and P7-18. |
| Protection characteristics | Protection function：Motor short – circuit detection upon power – on, output phase – loss protection, over – current protection, over – voltage protection, under – voltage protection, over – heat protection, overload protection, etc |
| Environment | Application place：Indoors, not directly exposed to sunlight, free from dust, corrosive gases, flammable gases, oil mist, water vapor, dripping water or salt, etc |
| Altitude：Less than 1000m | |
| Ambient humidity：- 10℃ ~ + 40℃ (When the ambient temperature is between 40℃ ~ 50℃, derating operation is required) | |
| Humidity：Less than 95%RH, without water droplet condensation | |
| Vibration：Less than 5.9m/s² (0.6g) | |
| Storage temperature：- 20℃ ~ + 60℃ |

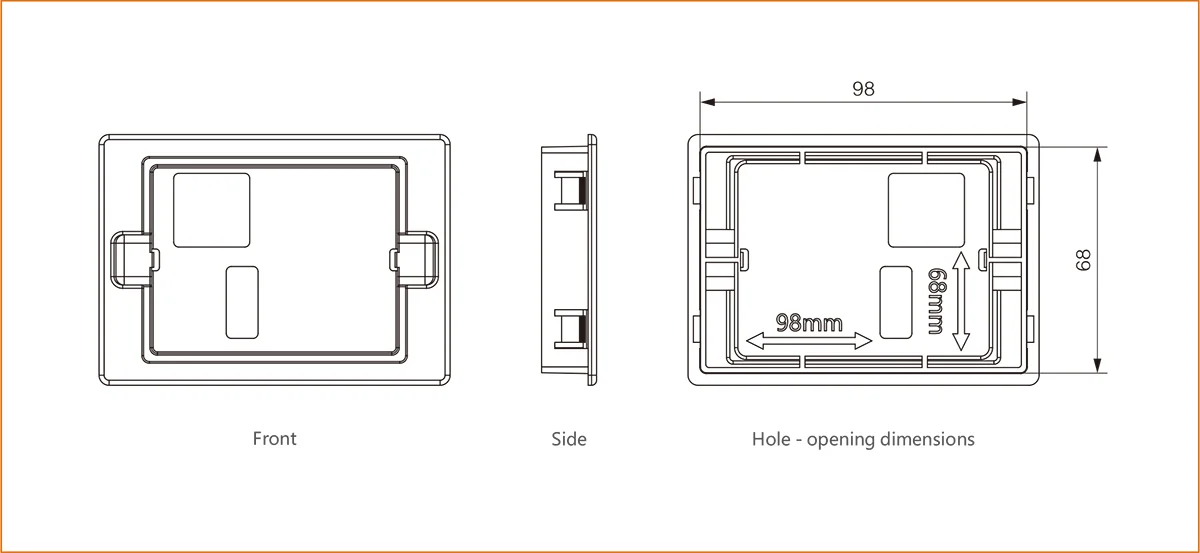

Installation dimensions of the keyboard base

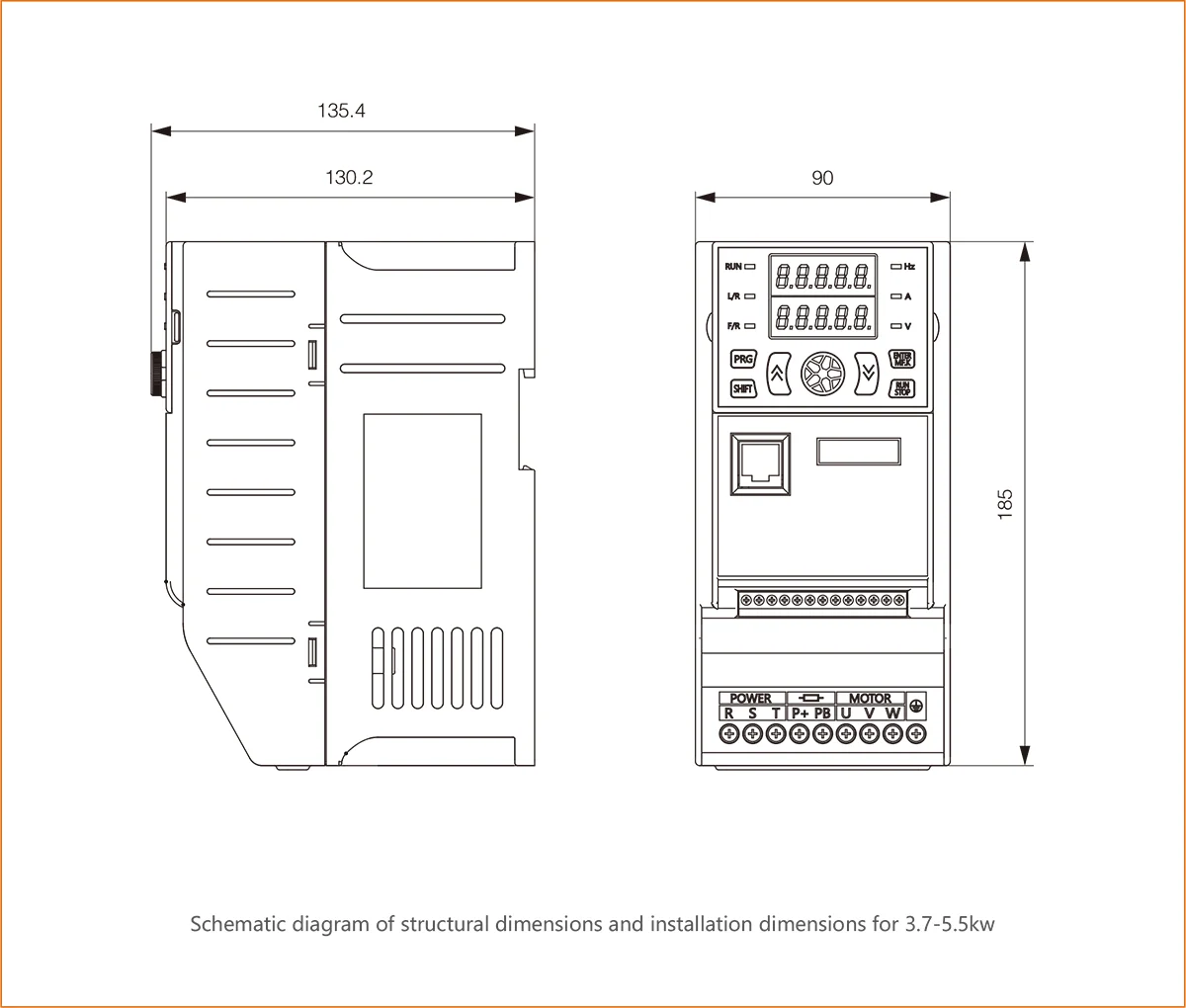

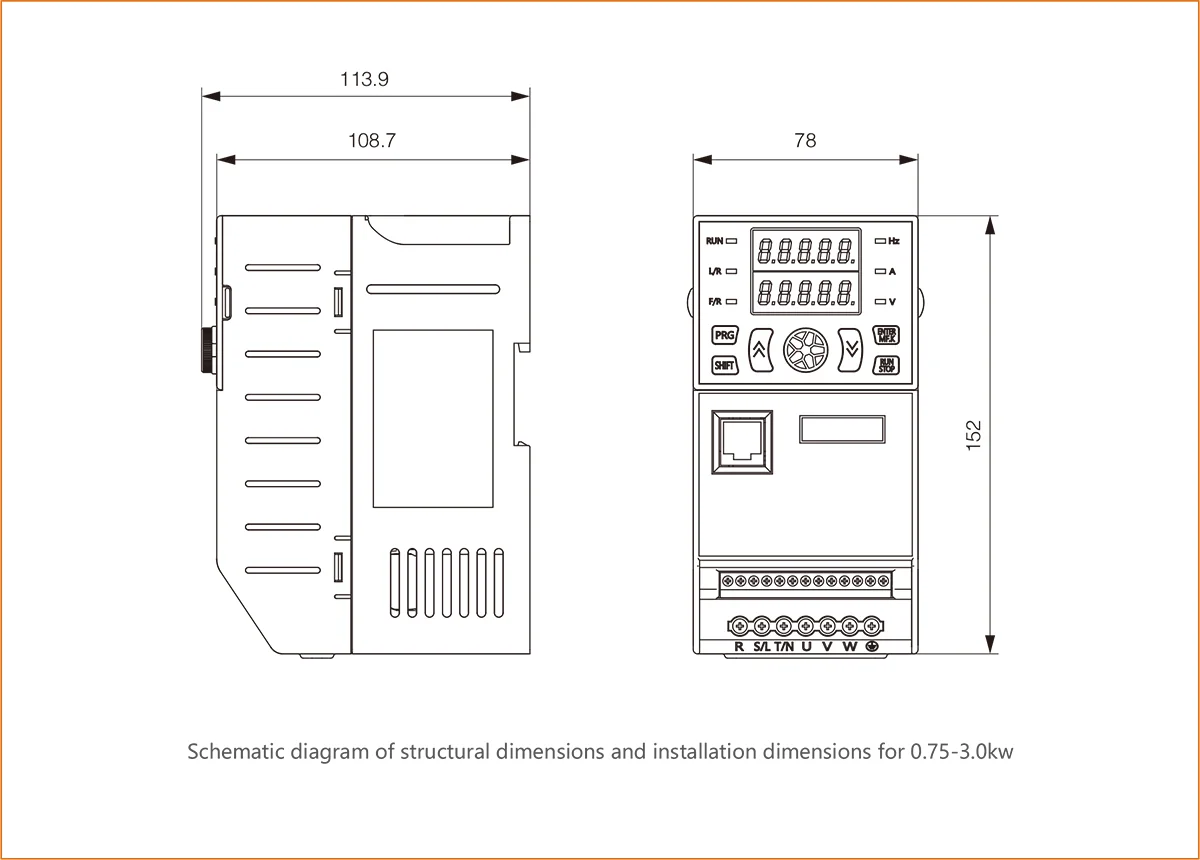

Overall installation dimensions
| Applicable Models | Model (kW) |
Overall dimensions | Installation dimensions | Installation Aperture | |||
|---|---|---|---|---|---|---|---|
| H(mm) | W(mm) | D(mm) | H1(mm) | W1(mm) | mm | ||
| 510 | 0.75-2.2 | 152 | 78 | 113.9 | 144.2 | 68.2 | 42 |
| 510 | 3.7-5.5 | 185 | 90 | 135.4 | 177.2 | 80.2 | 42 |
| 510 | 7.5-11 | 242 | 126.5 | 160 | 227.5 | 110 | 55 |
